ZEN M6 640 Thermal Monocular | Magnesium Armor. Absolute Stealth. Intelligent Tracking.

Scan. Range. Plan your next move.
640 thermal sensor · 35 mm F0.9 lens · Integrated laser rangefinder

$2,295.00 USD

Ships in 2–3 weeks

Shipping calculated at checkout.

SKU: M6-35R-B

Lens: 35mm f/0.9

35mm f/0.9

Color: Black

Payment and security

Your payment information is processed securely.

Product details

Lead Time: 2-3 Weeks

The ZEN M6-35R is a compact 640 thermal monocular for scanning fields, timber and brush before you move or set up. The fast 35 mm F0.9 lens balances field of view and reach, while the integrated laser rangefinder gives quick distance checks.

Magnesium-alloy housing with quiet, glove-friendly controls
Stalking Mode supports light discipline in the field
ZenTrace support in ZSYNC helps save and return to ranged locations

Best for: Predator and hog hunters who want a dedicated handheld scanner with built-in ranging.

View details

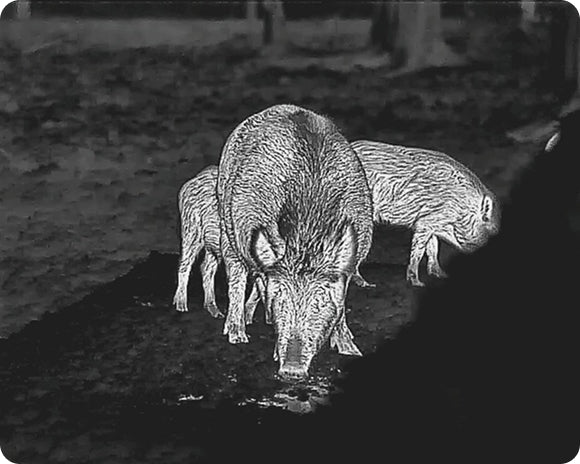

640 detail for observation

A 640 × 512 thermal sensor and fast 35 mm F0.9 lens balance field of view and reach. Scan fields, timber and brush before deciding where to move or set up.

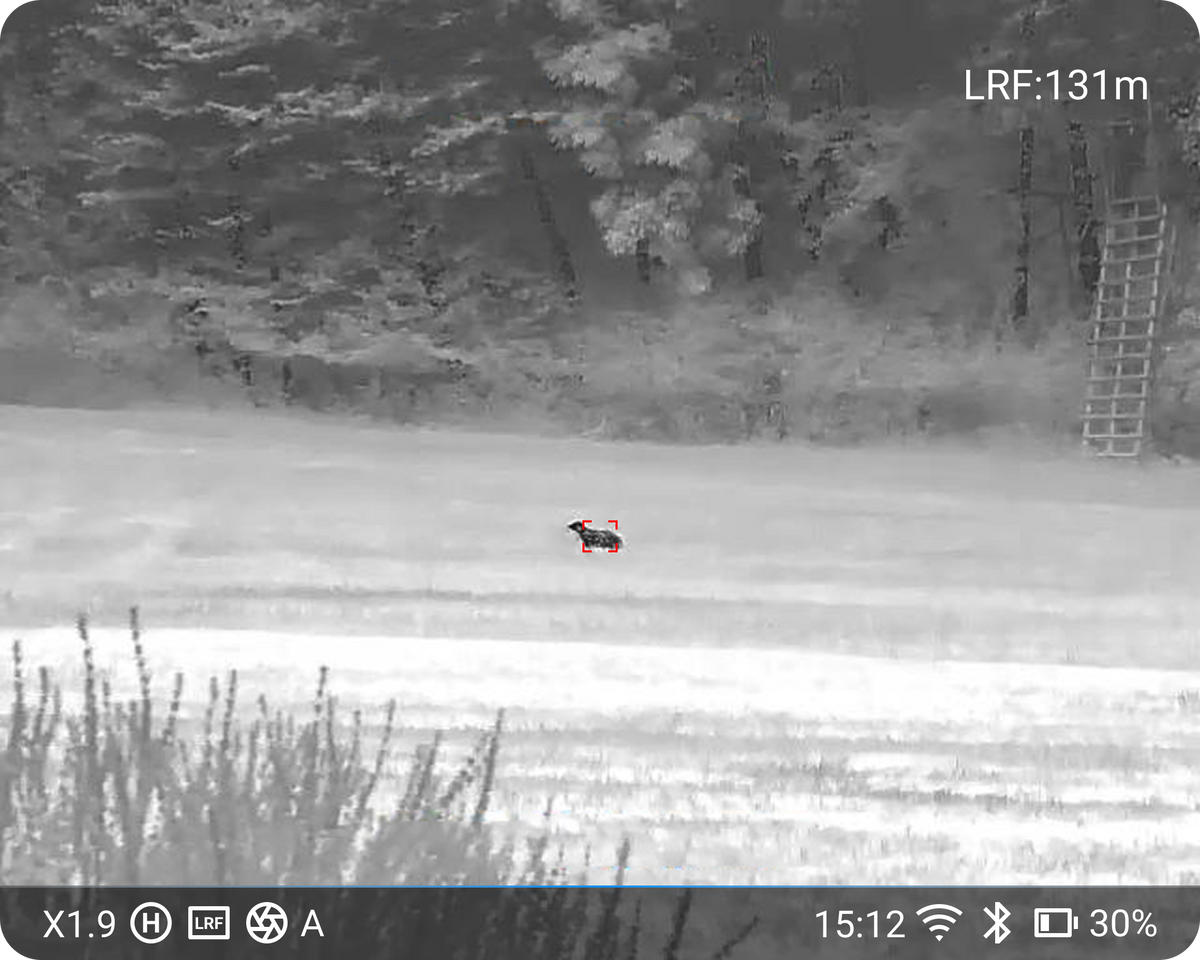

Built-in laser rangefinding

Check distance through the monocular with the integrated laser rangefinder. Keep observing while you assess terrain and plan your next move.

Quiet controls, comfortable handling

The symmetrical housing works in either hand, with controls you can identify by touch. Stalking Mode supports light discipline when moving through the field.

Replaceable 18650 power

Powered by one replaceable 18650 battery. Carry charged spares for longer outings. Runtime is up to 7 hours; actual battery life varies with settings, temperature and use.

Revisit observations with ZenTrace

Use ZenTrace with the supported ZSYNC setup to save ranged locations and help revisit observation points. Check connectivity and location permissions before heading out.

IP67 Protection

Magnesium housing with an IP67 protection rating.

64GB Recording

Save photos and video to built-in storage.

Compass & Tilt

Integrated digital compass and accelerometer.

Auto Sleep

Orientation-based standby helps conserve battery power.

Sensor & Imaging

M6-35R Technical Specifications — Sensor & Imaging
Detector type	VOx uncooled
Resolution	640 × 512
Pixel pitch	12 μm
Frame rate	50 Hz
Spectral range	8–14 μm
NETD	≤18 mK

Optics

M6-35R Technical Specifications — Optics
Objective lens	35 mm f/0.9
Field of view	12.5° (H) × 10° (V)
Close focus	5 yd
Detection range	1,950 yd
Optical magnification	1.9×

Laser Rangefinder

M6-35R Technical Specifications — Laser Rangefinder
Laser safety class	Class 1
Wavelength	905 nm
Maximum measuring range	1,312 yd
Measurement accuracy	±1 yd
Minimum measuring range	5 yd

Display & Features

M6-35R Technical Specifications — Display & Features
Display type	OLED
Display resolution	1920 × 1080
Digital zoom	1.9–15.2×
Color palettes	Multiple thermal palettes
Start-up time	Less than 5 seconds
Connectivity	Wi-Fi, Bluetooth & microphone
Sensors	Accelerometer and digital compass
Built-in memory	64 GB

Power

M6-35R Technical Specifications — Power
Battery	1 × 18650
Maximum battery life	7 hours
USB interface	USB Type-C

Physical

M6-35R Technical Specifications — Physical
Dimensions	5.9 × 2.16 × 3.18 in
Weight	12.34 oz
Housing material	Magnesium alloy

Environmental

M6-35R Technical Specifications — Environmental
Protection rating	IP67
Operating temperature	−4°F to 122°F
Storage temperature	−40°F to 122°F
