MEGA CQ25R · 4-IN-1
Thermal imaging and built-in ranging, in the configuration you need.

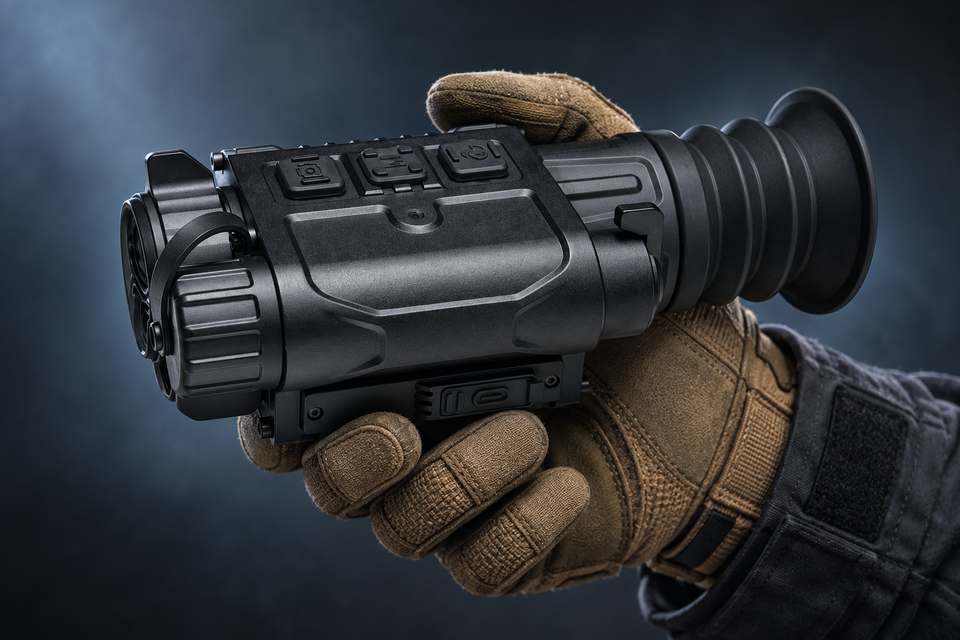

Scan fields and treelines before choosing your next move.

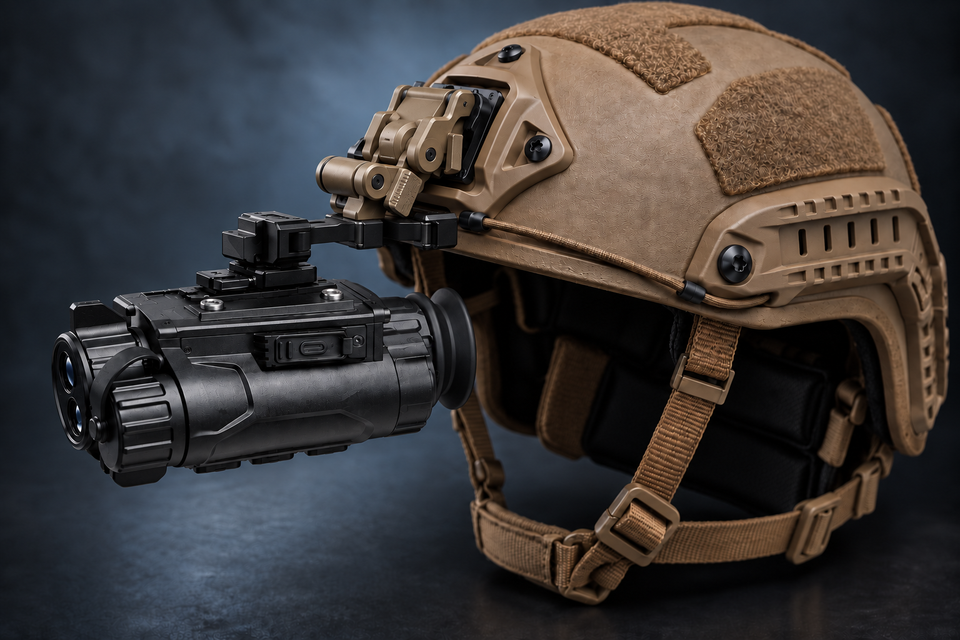

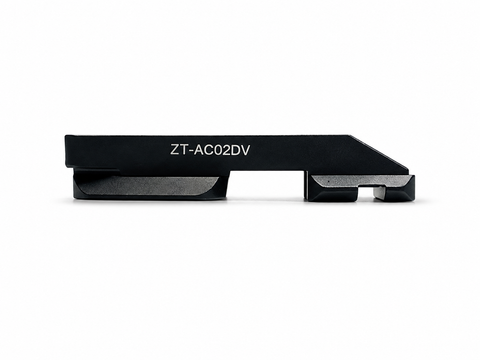

Hands-free thermal observation with a compatible helmet mount.

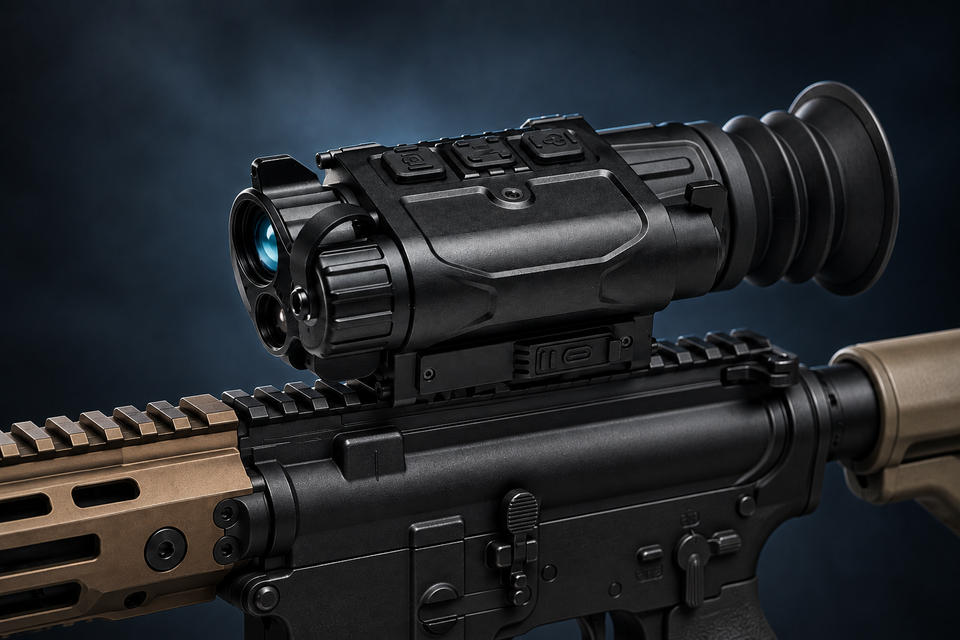

Use MEGA as a dedicated thermal sight with digital reticles.
Add thermal viewing to a compatible day optic.

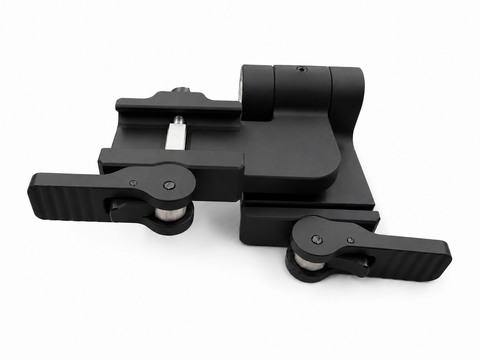

Mounts and adapters vary by configuration.
MEGA CQ25R

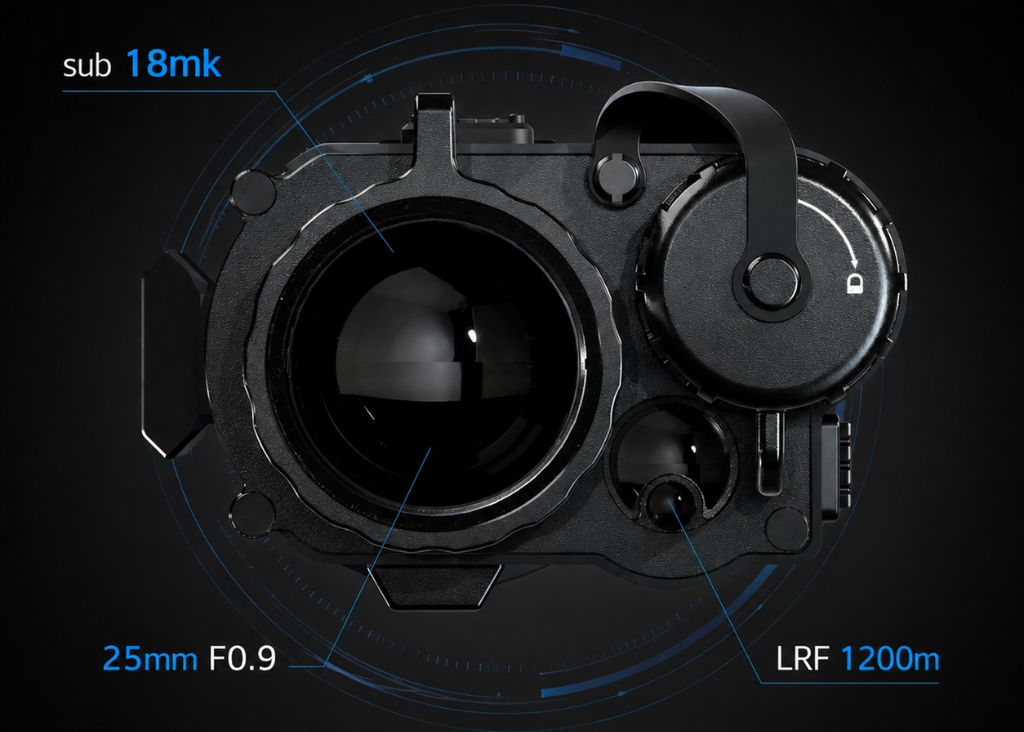

A 640 thermal platform pairs a 25 mm F0.9 lens with sub-18 mK thermal sensitivity to reveal temperature differences across a scene.
Image processing helps bring out detail for observation. Visibility and identification depend on distance, weather and the surrounding terrain.
MEGA CQ25R combines thermal imaging and laser rangefinding in a compact platform for multiple field setups. Move between observation and a compatible mounted configuration without choosing a separate thermal device for each role.
Mounts, adapters and setup requirements vary by configuration.

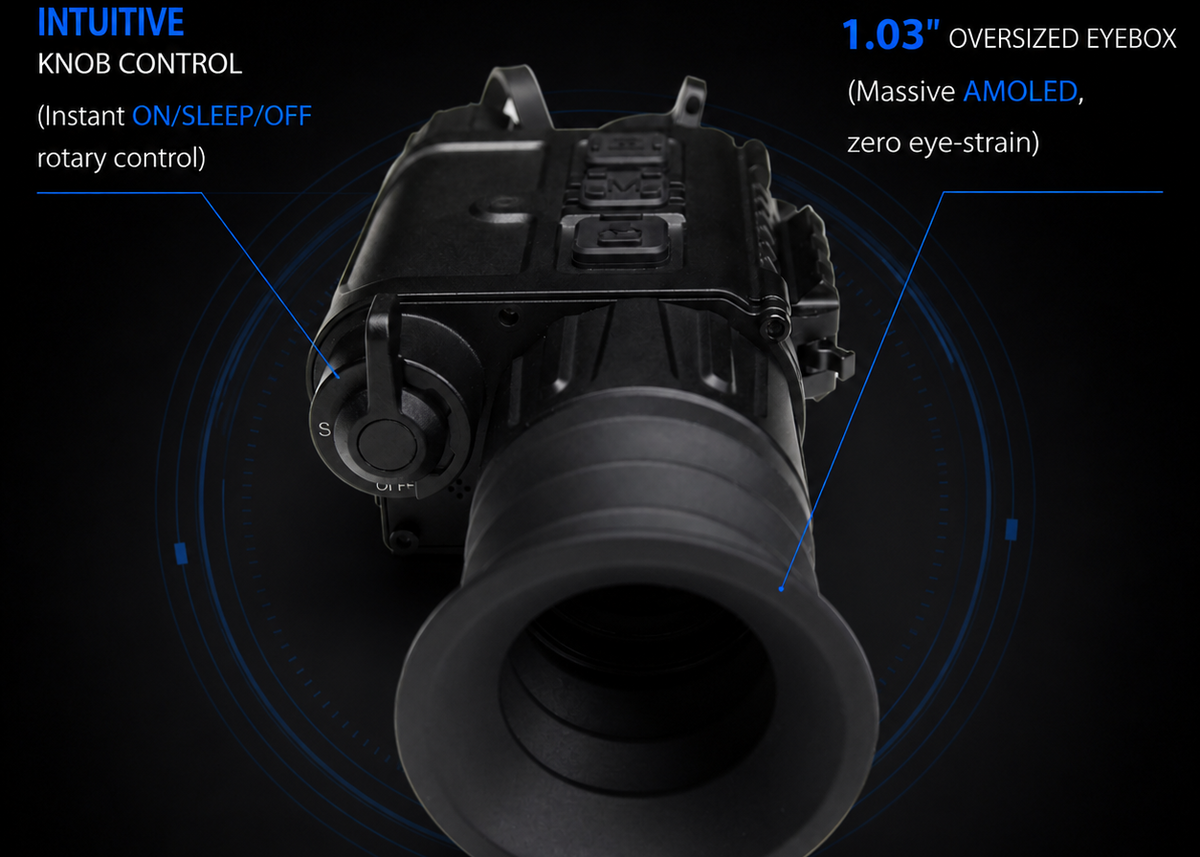

A large 1.03-inch OLED display and generous eyebox make it easier to find a comfortable viewing position across handheld and mounted setups.
Adjust focus and display settings to suit the scene and your configuration.
MEGA CQ25R · BALLISTIC CALCULATOR

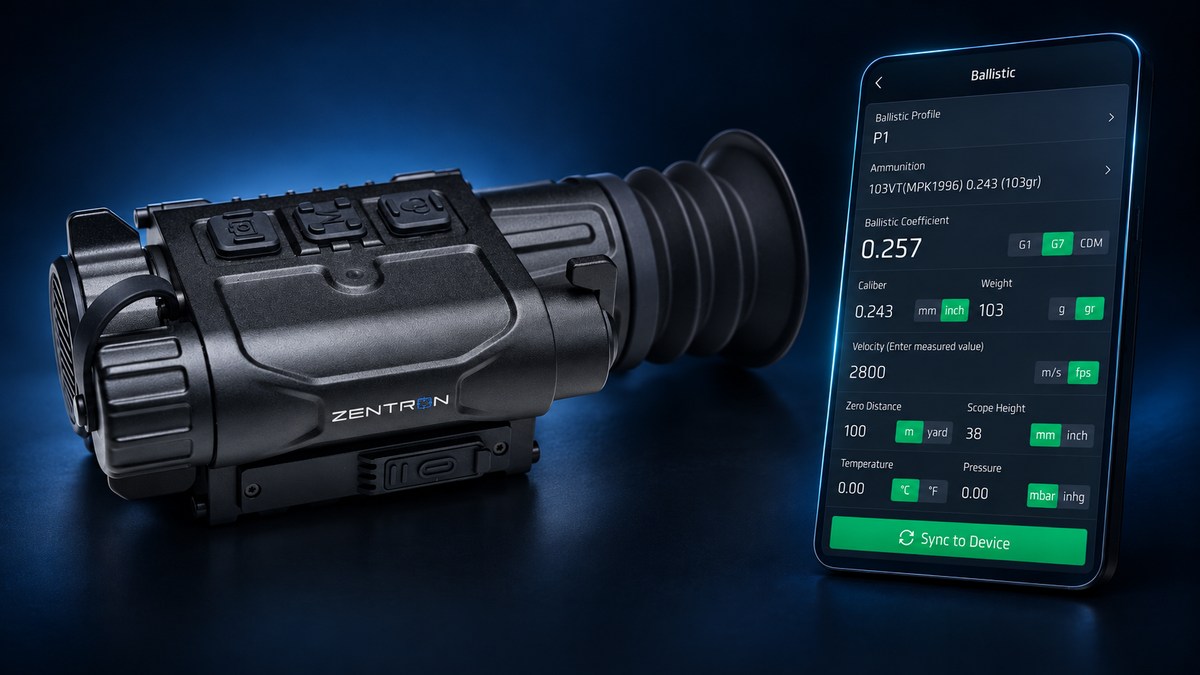

MEGA CQ25R supports ballistic calculation (BC) with app-configured profiles and its integrated laser rangefinder. Set up your ballistic data in ZSYNC, save it to the device, and view a calculated reference alongside measured distance.
Connect MEGA to the app, open Ballistic Calculation, and enter the parameters for your selected profile.
Save the profile in the app to transfer it to the device. Reconnect whenever you need to update its parameters.
Select the saved profile on MEGA. The integrated rangefinder supplies distance for the on-device ballistic calculation.
Select the correct saved profile and verify your setup before use. Available displays and controls depend on device mode and firmware.
MEGA CQ25R

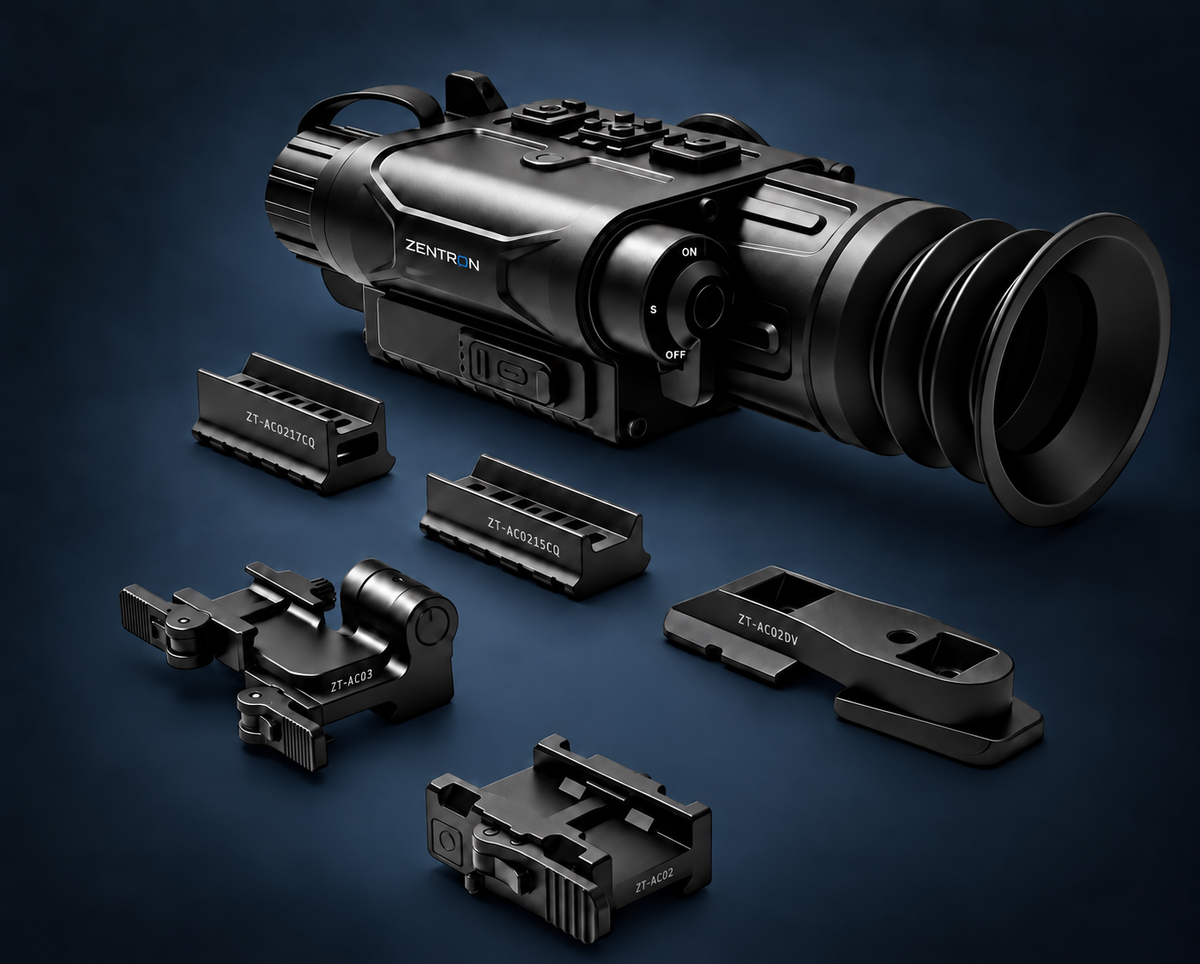

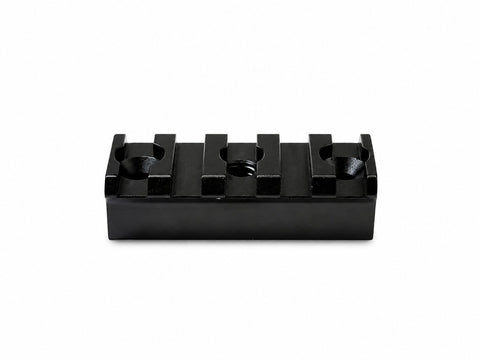

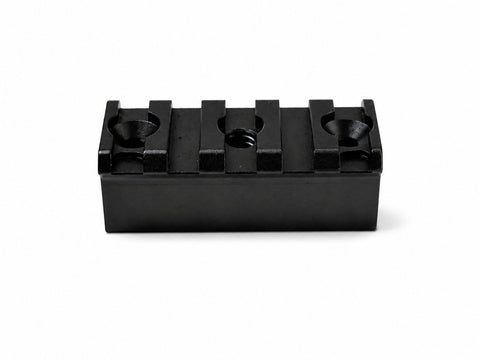

Engineered for instant platform switching. Includes 1.5″ and 1.7″ Picatinny risers for seamless weapon integration and uncompromising adaptability.

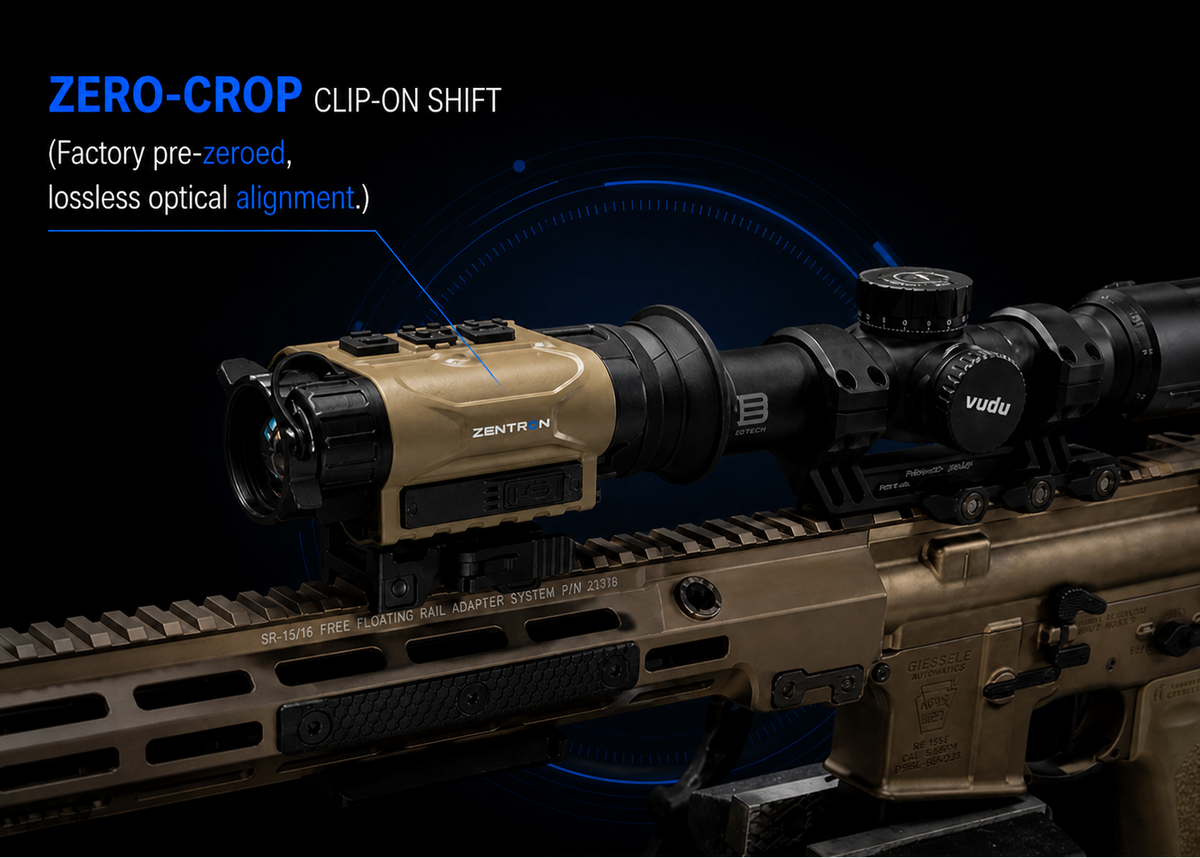

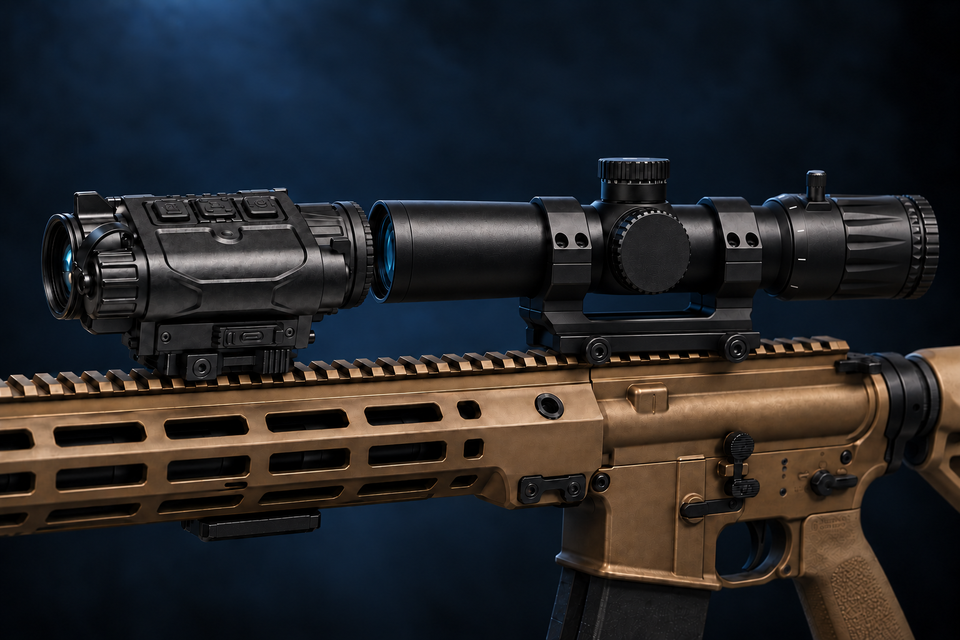

Use the MEGA CQ25R ahead of a compatible day optic to add thermal viewing. Check the required adapter, optical alignment and setup guidance for your configuration, then confirm zero before use.
Use a replaceable 18650 battery and carry a charged spare for longer outings. A single battery provides up to 8 hours of runtime; actual battery life varies with settings, temperature and use.

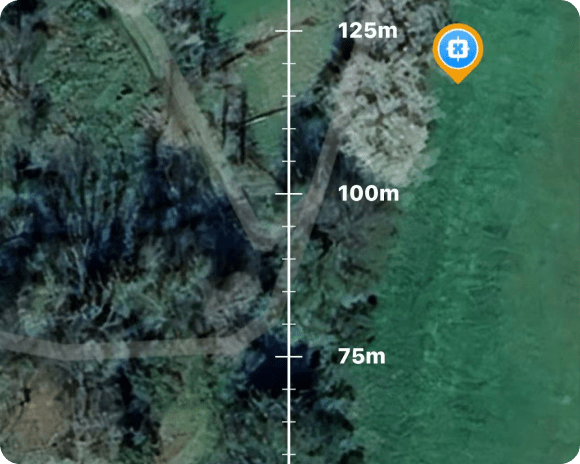

Use ZenTrace with the supported app setup to record location information and help revisit observation points. Check device connectivity and location permissions before heading out.
Captures the action before and after the shot. Syncs instantly to your phone via the ZSYNC App.
Store up to 10 profiles to organize your different setups. Select the appropriate saved profile when changing configurations, and verify alignment and zero after remounting.
MEGA CQ25R
Magnesium housing with an IP67 protection rating.
Save photos and video to built-in storage.
Integrated digital compass and accelerometer.
Orientation-based standby with an adjustable delay.
4MR REVIEW
Take a closer look with 4MR.
TECHNICAL DETAILS
Technical details for the MEGA CQ25R.
| Detector type | VOx uncooled |
|---|---|
| Resolution | 640 × 512 |
| Pixel pitch | 12 μm |
| Frame rate | 50 Hz |
| Spectral range | 8–14 μm |
| NETD | ≤18 mK |
| Objective lens | 25 mm f/0.9 |
|---|---|
| Field of view | 17.5° (H) × 14° (V) |
| Close focus | 2 m |
| Detection range | 1,500 m / 1,640 yd |
| Optical magnification | Monocular: 1.7× Scope: 1.4× Helmet: 1.1× Clip-on: 1× |
| Laser safety class | Class 1 |
|---|---|
| Wavelength | 905 nm |
| Maximum measuring range | 1,200 m / 1,312 yd |
| Measurement accuracy | ±1 yd |
| Minimum measuring range | 5 m |
| Display type | OLED |
|---|---|
| Display resolution | 2560 × 2560 |
| Digital zoom | Monocular: 1.7–13.6× Scope: 1.4–11.2× Helmet: 1.1–8.8× Clip-on: 1× |
| Color palettes | Multiple thermal palettes |
| Start-up time | Less than 5 seconds |
| Connectivity | Wi-Fi, Bluetooth & microphone |
| Sensors | Built-in accelerometer and digital compass |
| Built-in memory | 64 GB |
| Ballistic calculation | App-configured ballistic profiles with integrated rangefinder support |
| Battery | 1 × 18650 |
|---|---|
| Maximum battery life | 8 hours |
| USB interface | USB Type-C |
| Dimensions | 161.5 × 75.5 × 51 mm |
|---|---|
| Weight | 365 g |
| Housing material | Magnesium alloy |
| Protection rating | IP67 |
|---|---|
| Operating temperature | −20°C to 50°C |
| Storage temperature | −40°C to 50°C |
| Maximum recoil | 1,000 g / 0.4 ms; rated up to .300 Win. Mag. and 7mm Rem. Mag. |
1. USB cable for battery charger
2. Battery charger
3. Eyecup
4. Power adapter
5. Battery case
6. Two 18650 batteries (70 mm length)
7. Quick-release Picatinny mount
8. Spare rubber ring
9. T20 & T25 Torx keys
10. Battery cap
11. Lens cloth
12. USB Type-C cable
