ZEN Q50R 640 Thermal Scope | Handheld Scanner + Weapon Sight

Find the heat. Check the distance.
640 thermal sensor · 50 mm lens · Integrated laser rangefinder

$3,150.00 USD

Shipping calculated at checkout.

SKU: Q50R-T

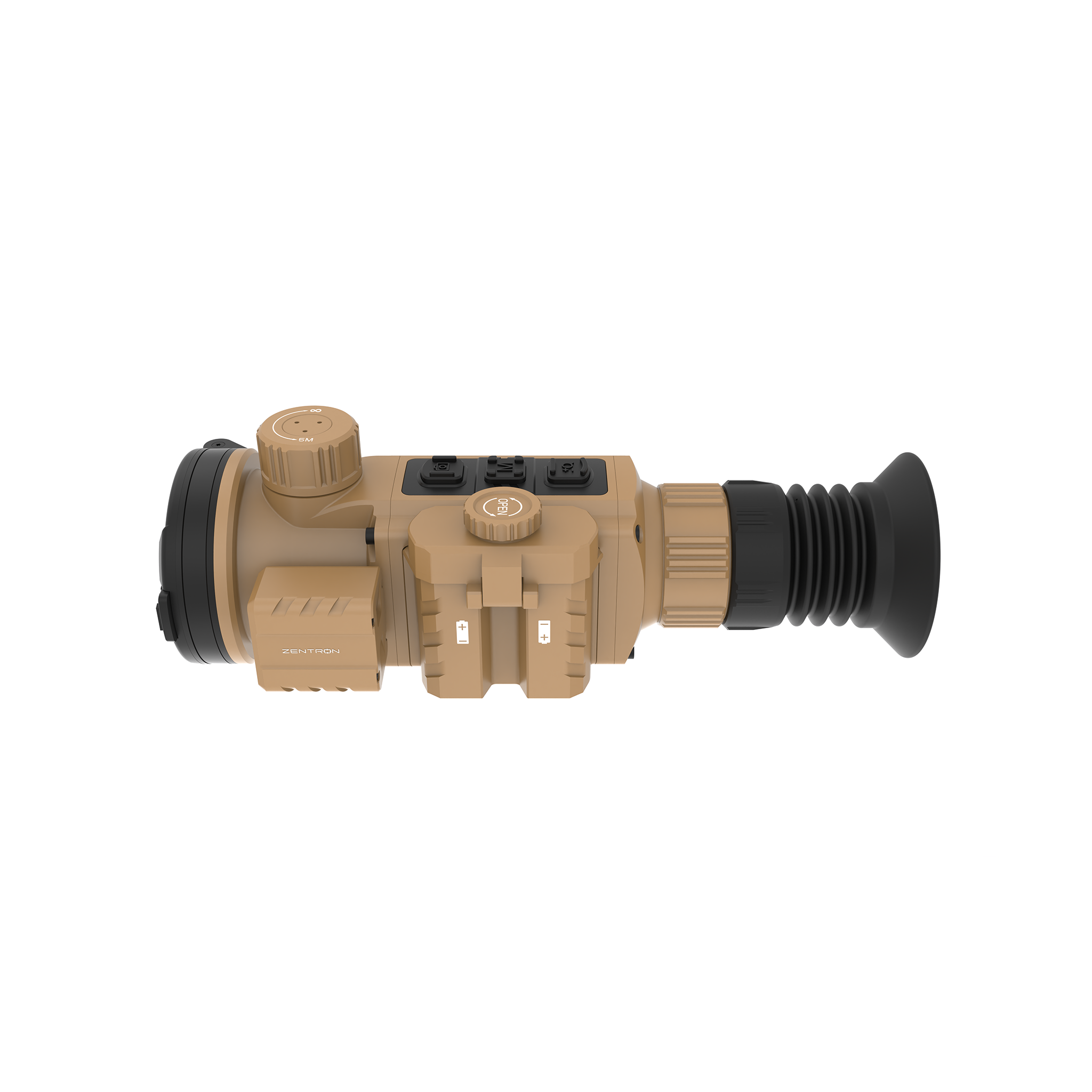

Color: Tan

Payment and security

Your payment information is processed securely.

Product details

Lead Time: 2-3 Weeks

The ZEN Q50R puts a 640 thermal sensor, 50 mm lens and integrated laser rangefinder into one compact optic. Scan by hand, check distance, then mount it as a dedicated thermal scope for open-field predator or hog hunting.

Detailed 640 imaging for detection and identification at distance
Built-in rangefinder for fast distance checks
Balanced for handheld or rifle-mounted use

Best for: Hunters who want long-range thermal performance and ranging in a single device.

View details

640 detail for open country

A 640 × 512 thermal sensor and 50 mm f/1.0 lens help reveal detail across fields, pastures and longer observation lanes.

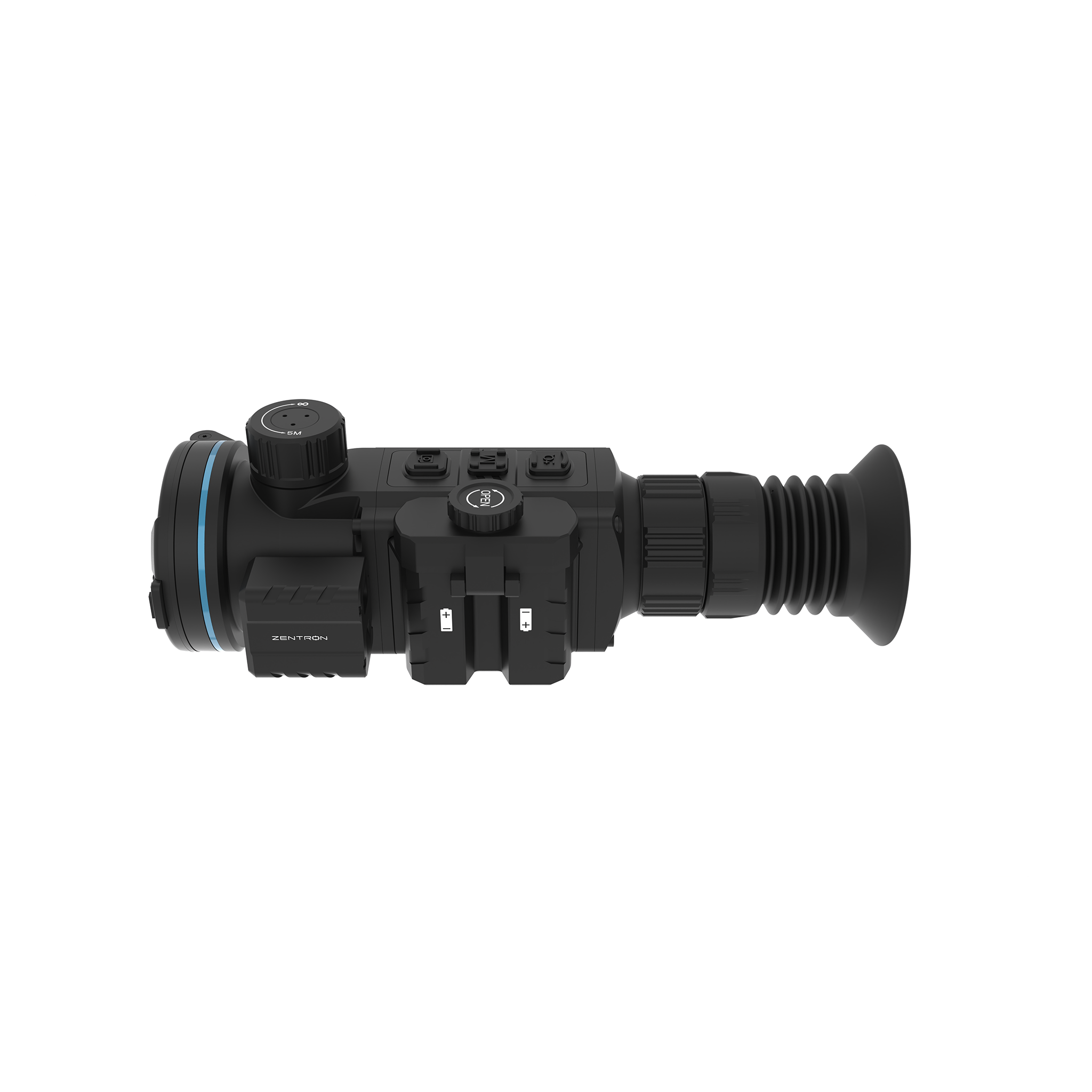

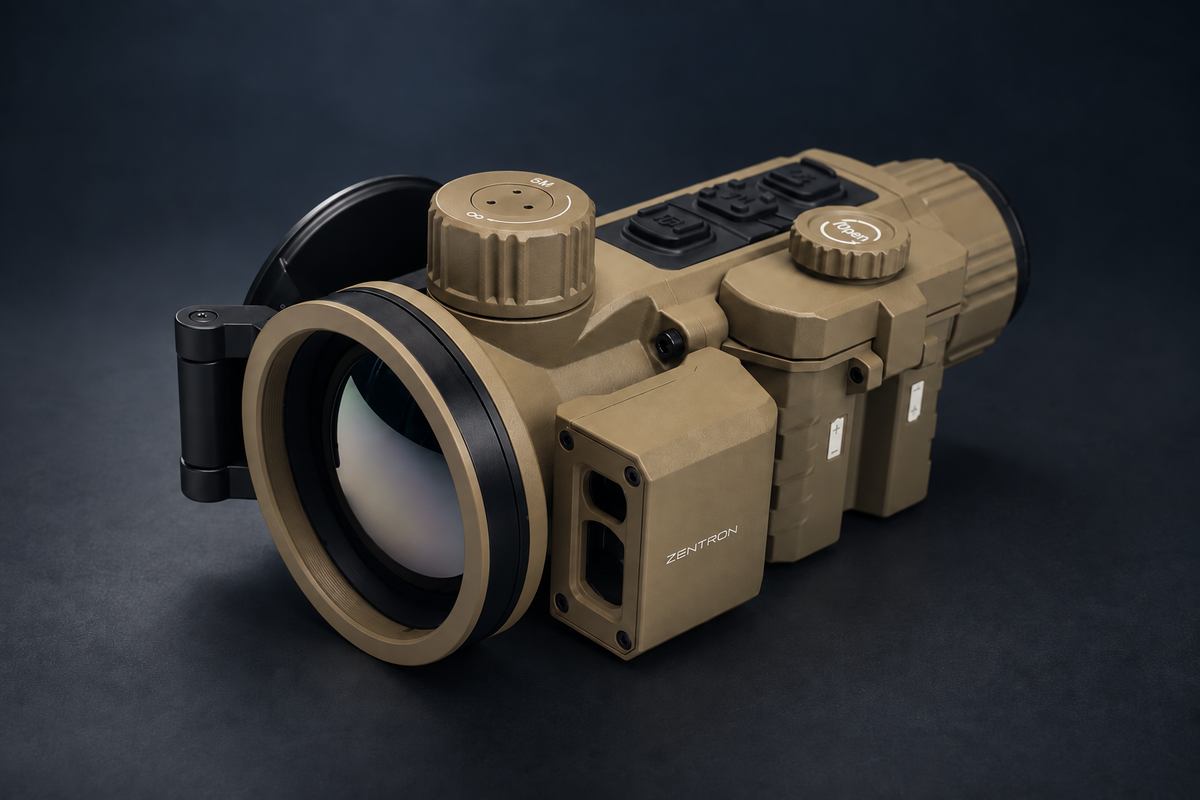

Zentron Q50R thermal device on a dark studio background.

Handheld scanning and scope use

Carry the Q50R as a handheld scanner or use a compatible mount for a dedicated thermal-scope setup. The magnesium-alloy housing keeps the format compact. Verify the selected profile and zero after mounting.

Ranging and app-configured ballistics

Check distance with the integrated laser rangefinder. Configure your ballistic profile in ZSYNC and use the saved parameters with range data for ballistic calculation. Select the correct profile and verify your setup before use.

IP67 Protection

Magnesium housing with an IP67 protection rating.

64GB Recording

Save photos and video, including recoil-activated pre-record. Transfer selected files with ZSYNC.

Compass & Tilt

Integrated digital compass and accelerometer.

ZSYNC Connectivity

Connect your device to review and transfer selected media.

Quiet, tactile controls

Distinct controls are easy to find by touch, including with gloves. Quiet operation keeps distractions down.

Replaceable field power

Two replaceable 18350 batteries. Up to 6 hours of runtime; battery life varies with settings, temperature and use.

Sensor & Imaging

Q50R Technical Specifications — Sensor & Imaging
Detector type	VOx uncooled
Resolution	640 × 512
Pixel pitch	12 μm
Frame rate	50 Hz
Spectral range	8–14 μm
NETD	≤18 mK

Optics

Q50R Technical Specifications — Optics
Objective lens	50 mm f/1.0
Field of view	8.7° (H) × 7° (V)
Close focus	5 yd
Detection range	2,800 yd
Optical magnification	2.3×

Laser Rangefinder

Q50R Technical Specifications — Laser Rangefinder
Laser safety class	Class 1
Wavelength	905 nm
Maximum measuring range	1,312 yd
Measurement accuracy	±1 yd
Minimum measuring range	5 yd

Display & Features

Q50R Technical Specifications — Display & Features
Display type	OLED
Display resolution	1920 × 1080
Digital zoom	2.3–18.4×
Color palettes	Multiple thermal palettes
Reticle types	8
Reticle colors	6 (5 colors + Auto)
Picture-in-Picture	2× / 4× / 8×
Eye relief	52 mm
Diopter adjustment	−5 to +5
Connectivity	Wi-Fi, Bluetooth & microphone
Built-in memory	64 GB

Power

Q50R Technical Specifications — Power
Battery	2 × 18350
Maximum battery life	6 hours
USB interface	USB Type-C

Physical

Q50R Technical Specifications — Physical

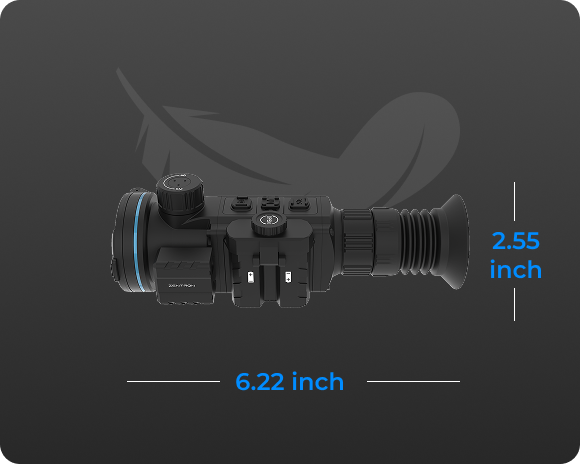

Dimensions	6.22 × 2.55 × 2.91 in
Weight	16.71 oz
Housing material	Magnesium alloy

Environmental

Q50R Technical Specifications — Environmental
Protection rating	IP67
Operating temperature	−4°F to 122°F
Storage temperature	−40°F to 122°F
Maximum recoil	1,200 g recoil resistance; rated up to .375 H&H Magnum and 12-gauge
