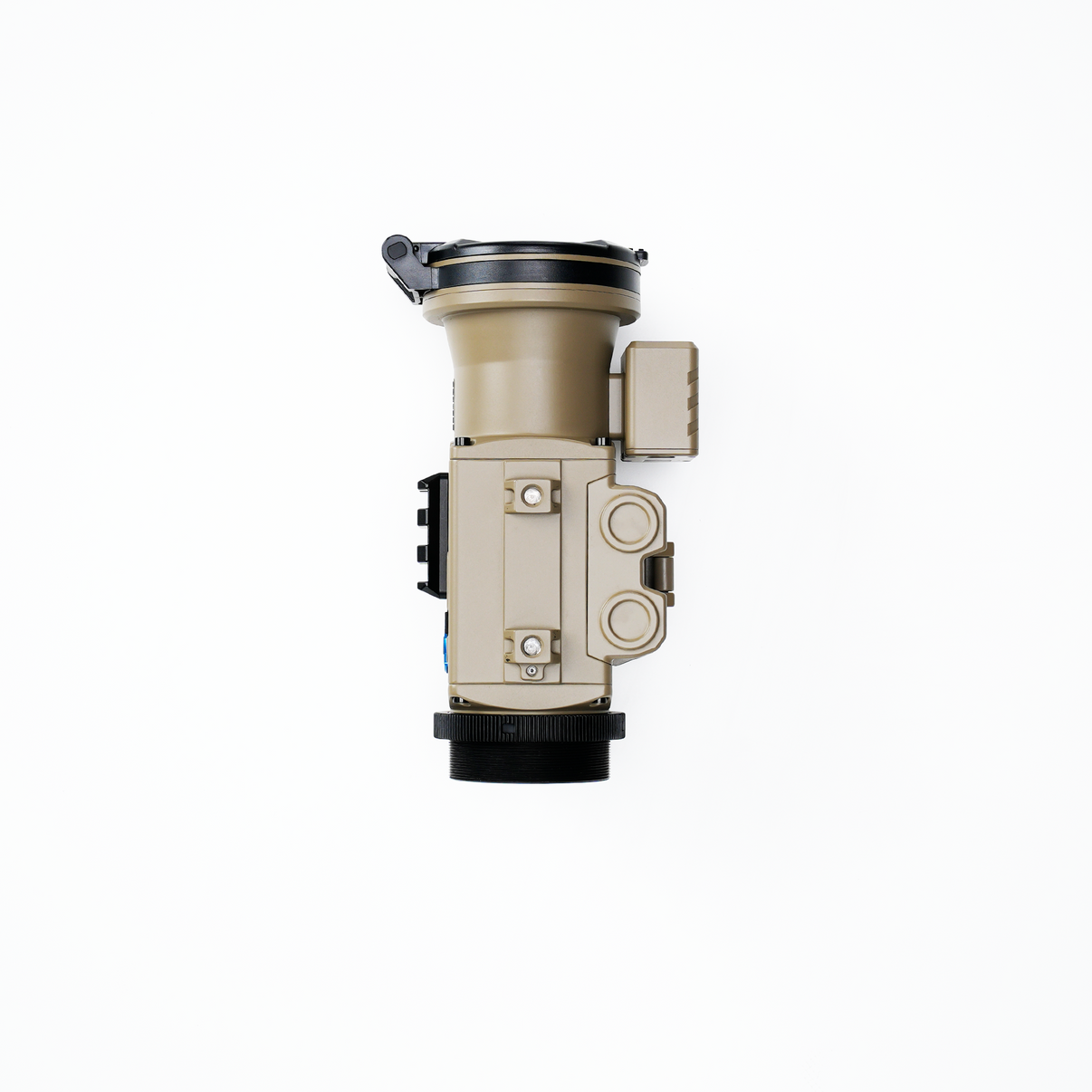

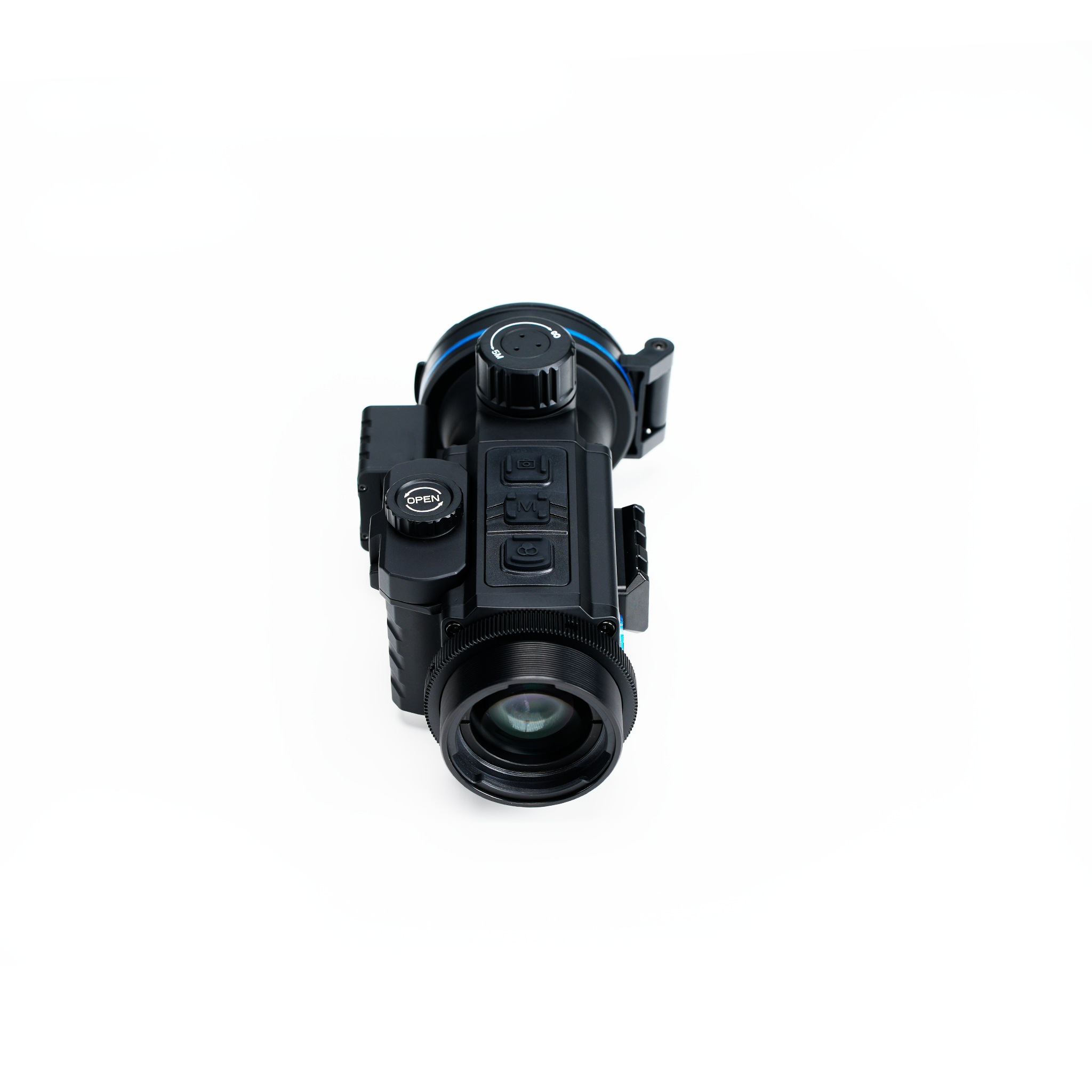

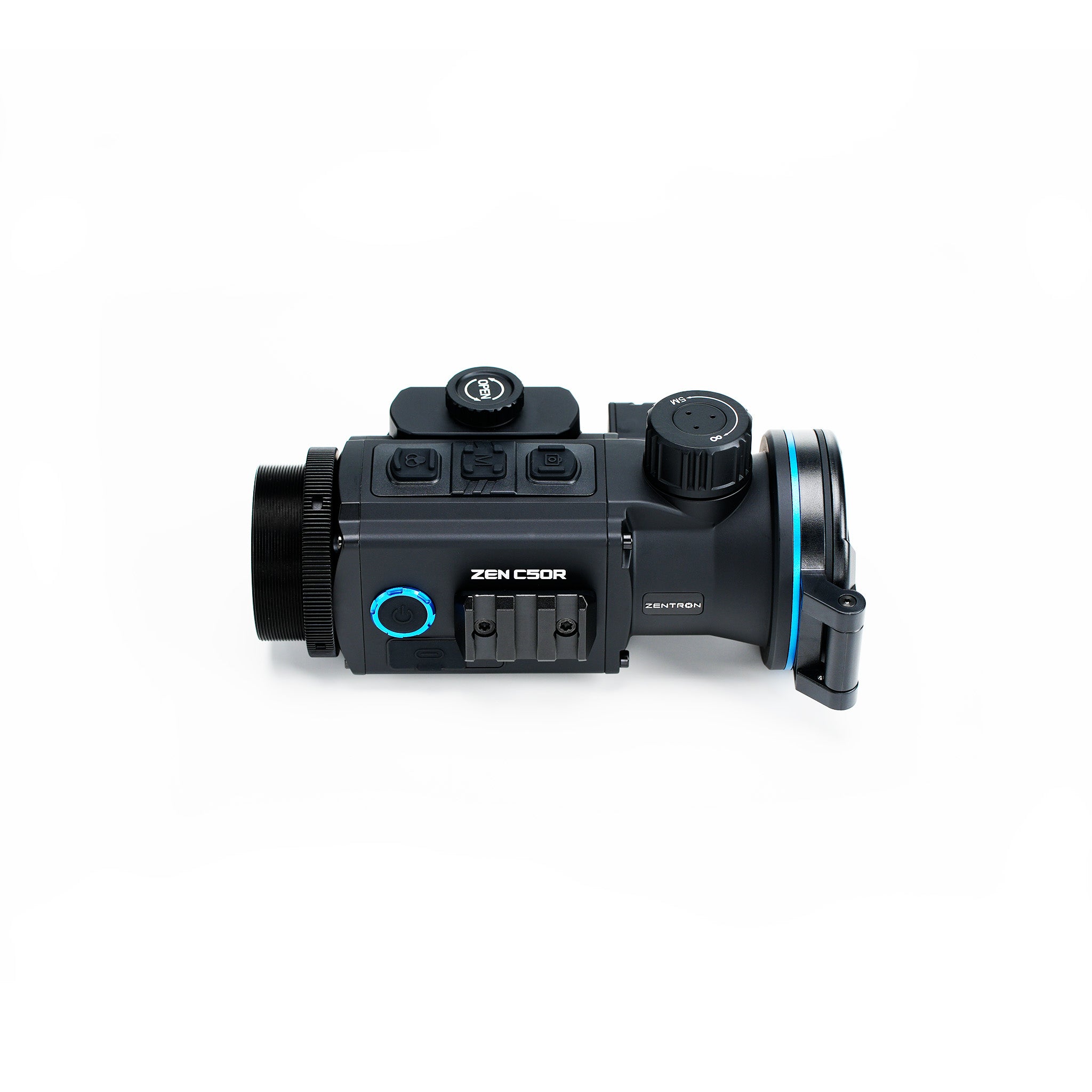

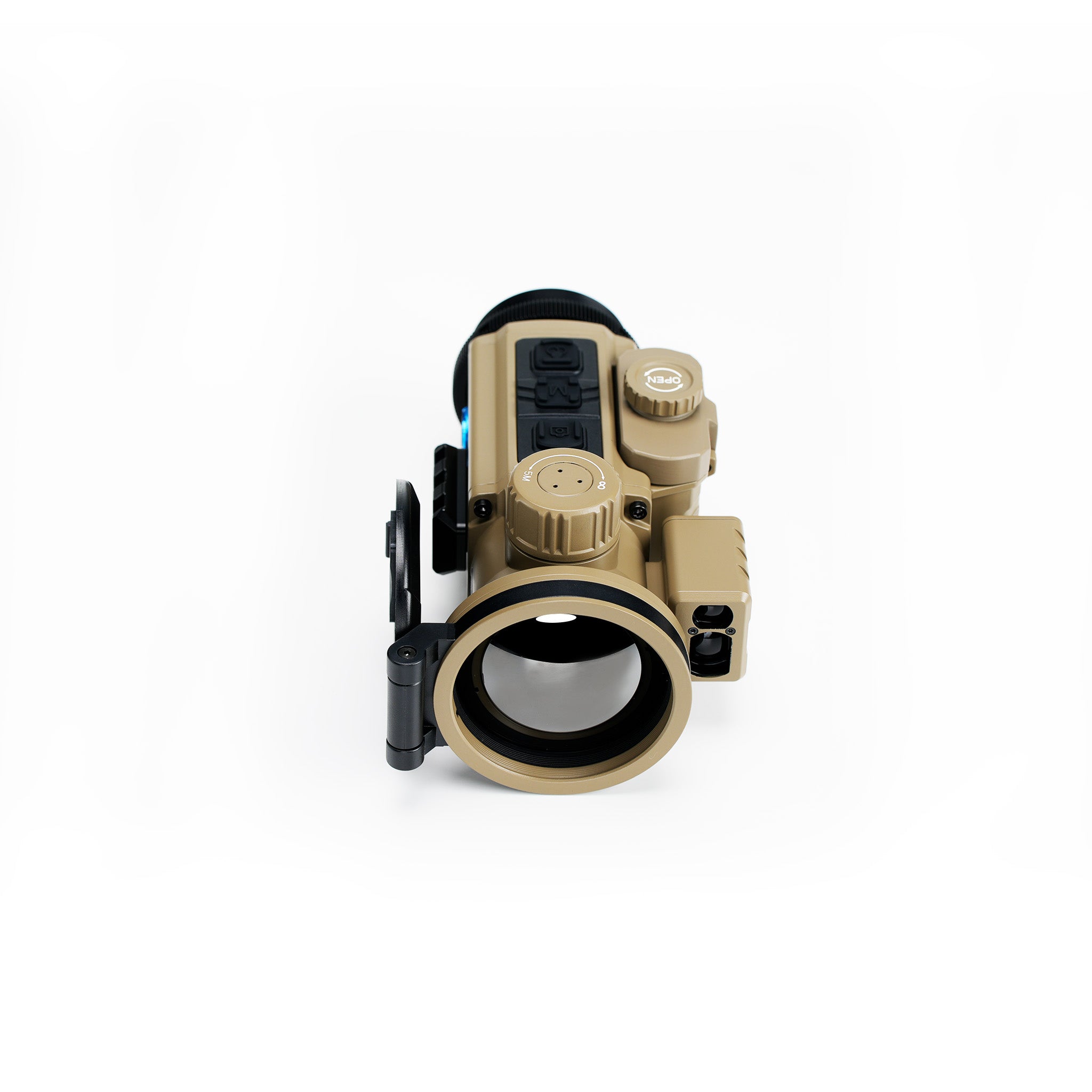

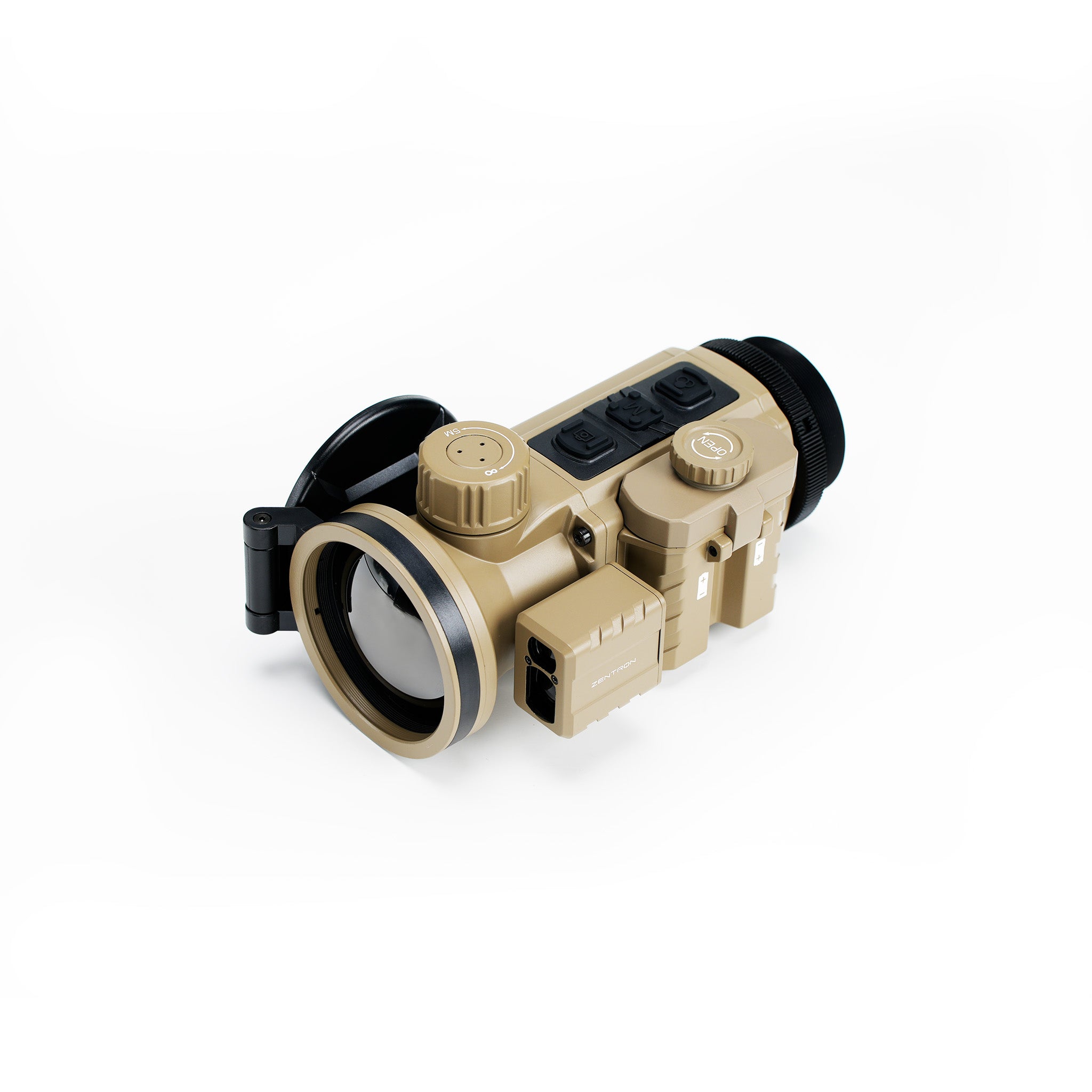

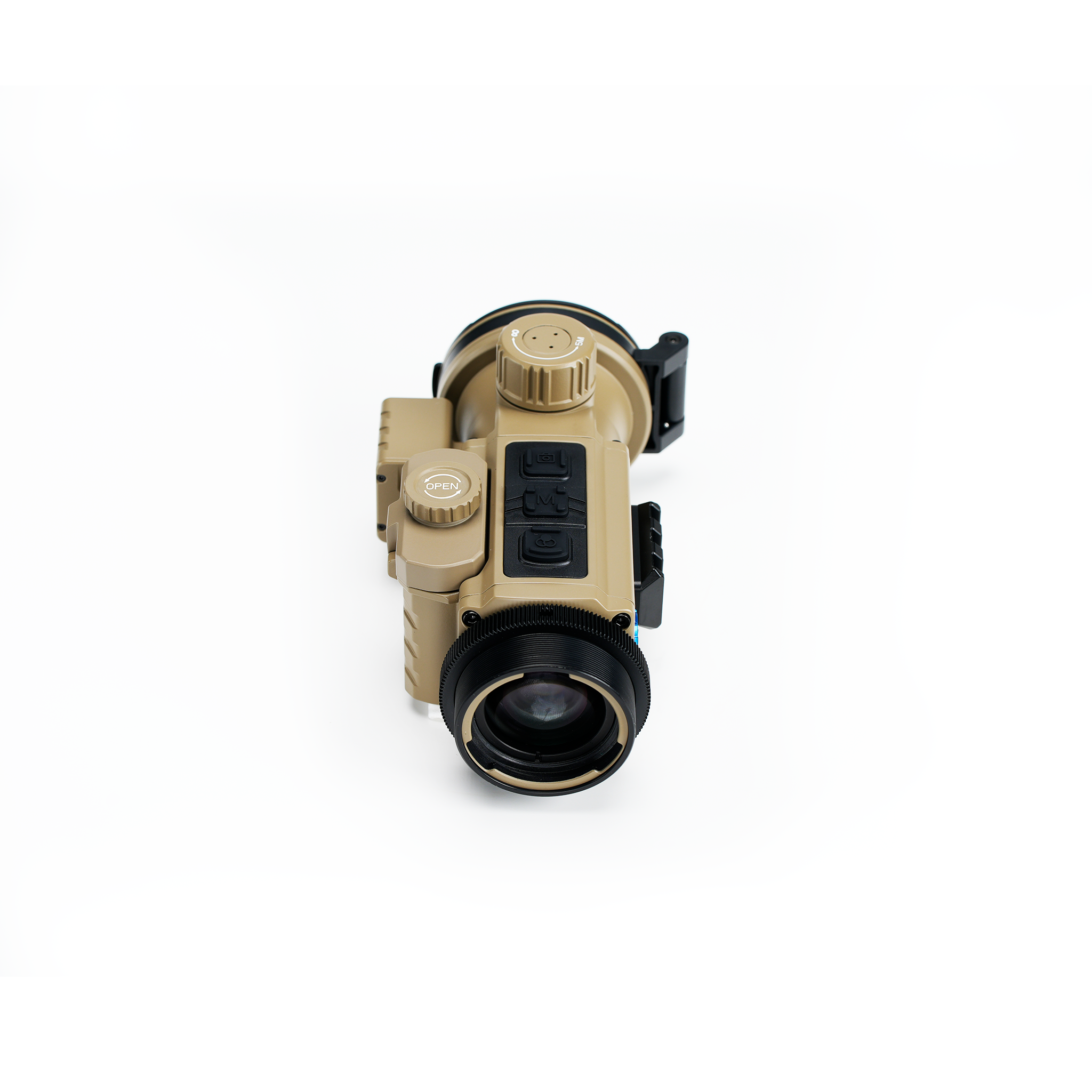

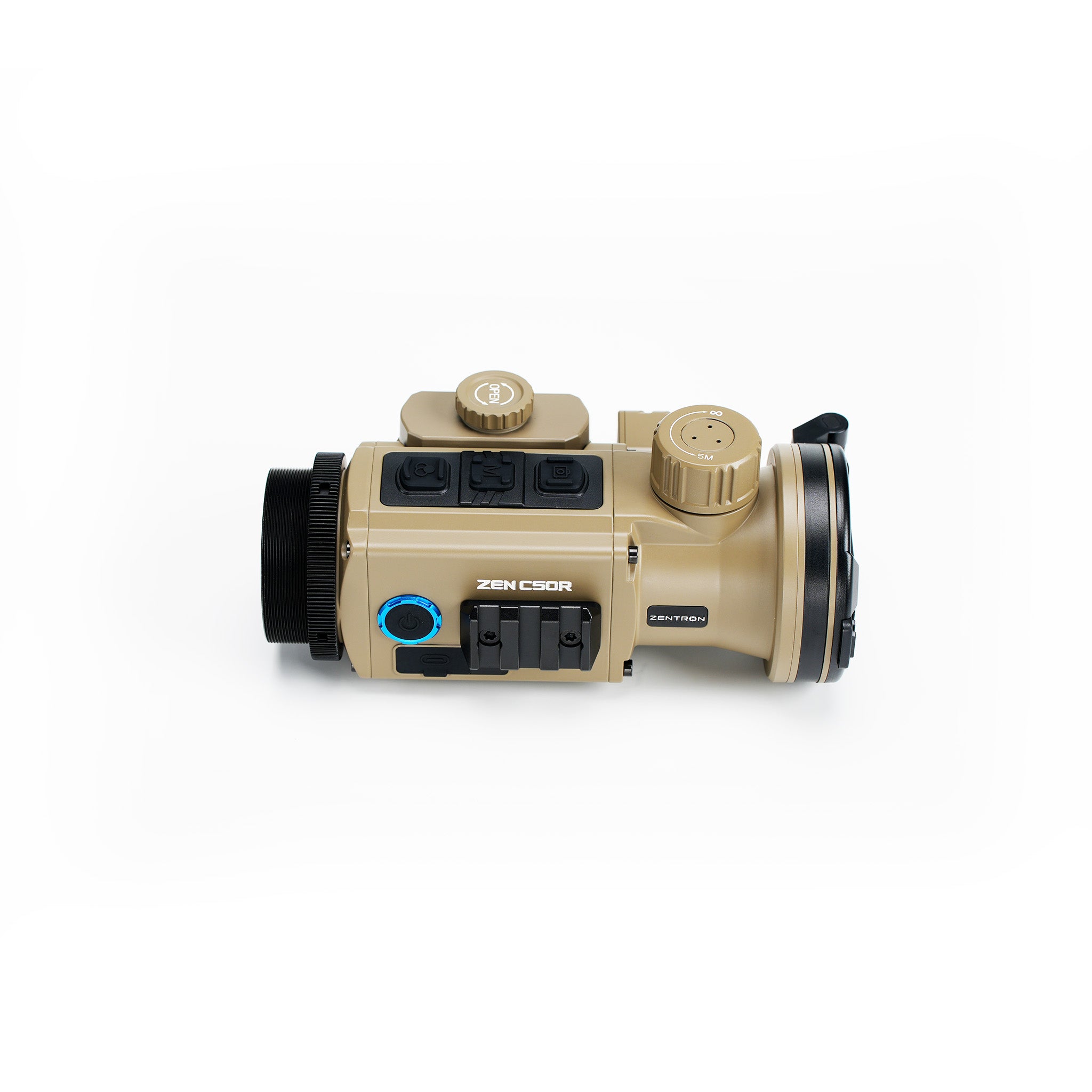

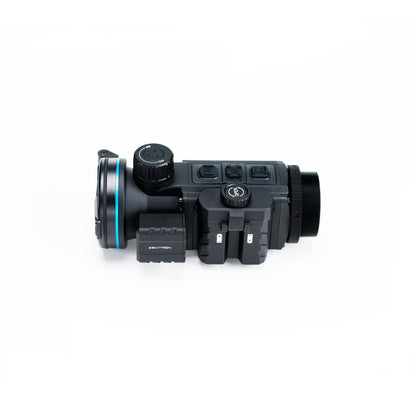

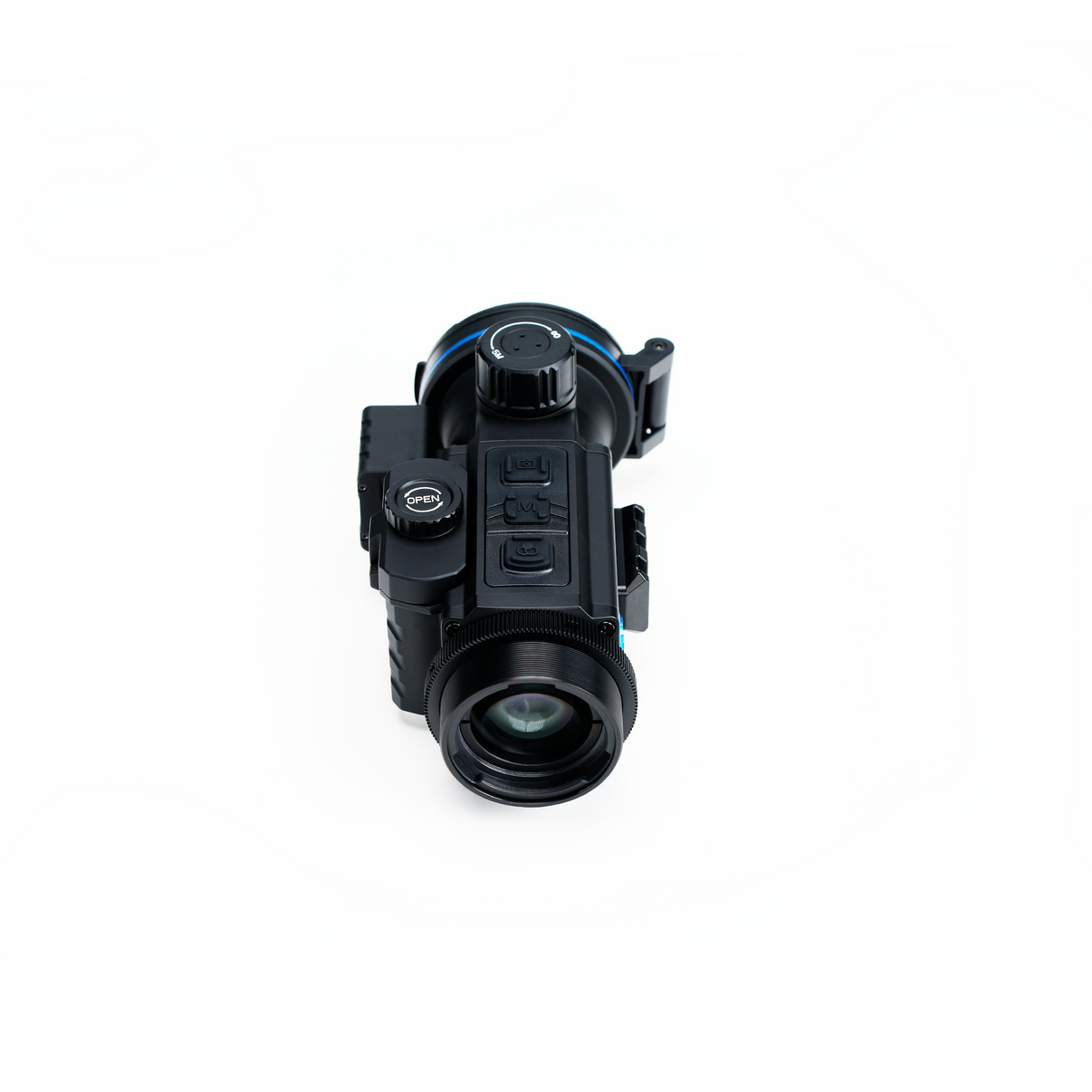

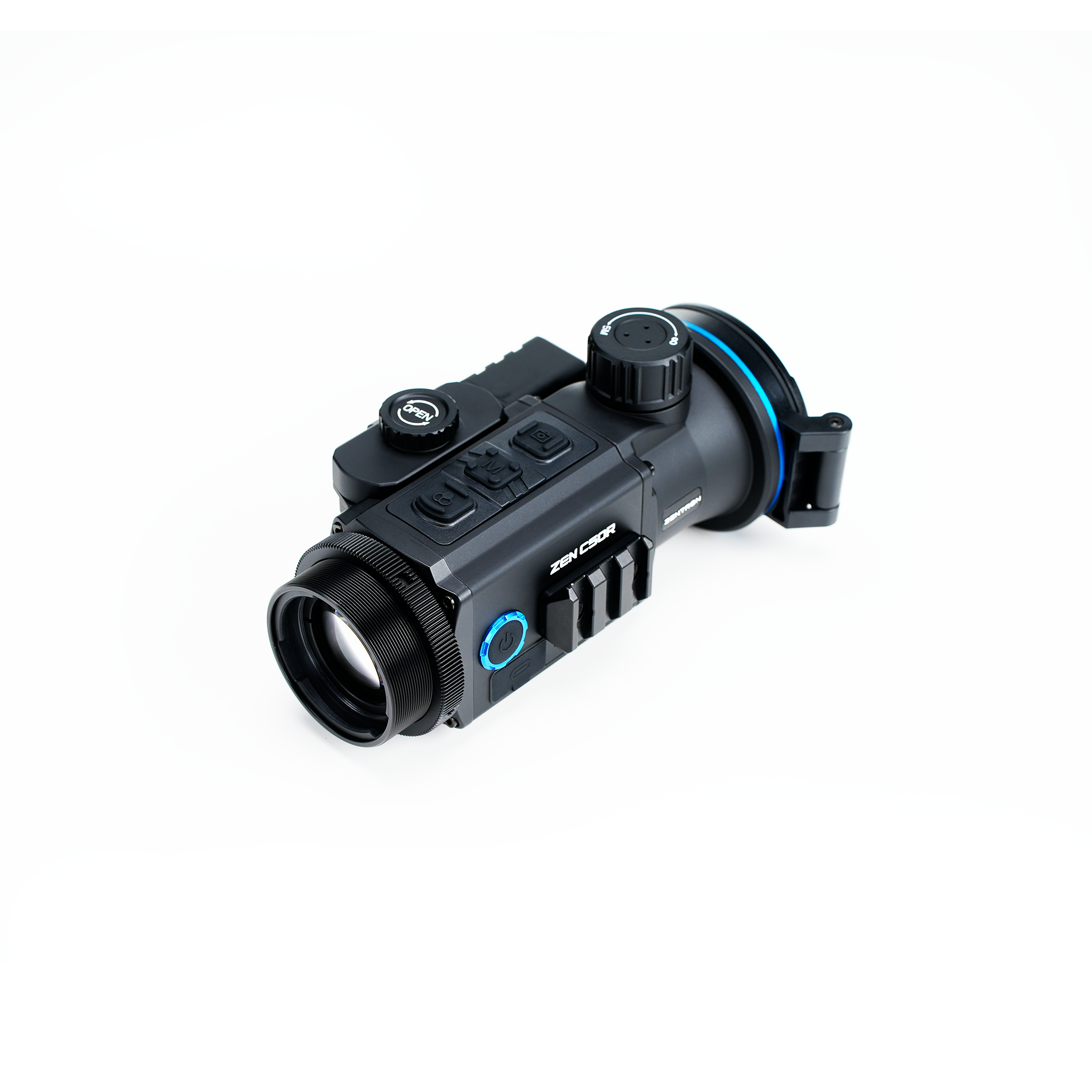

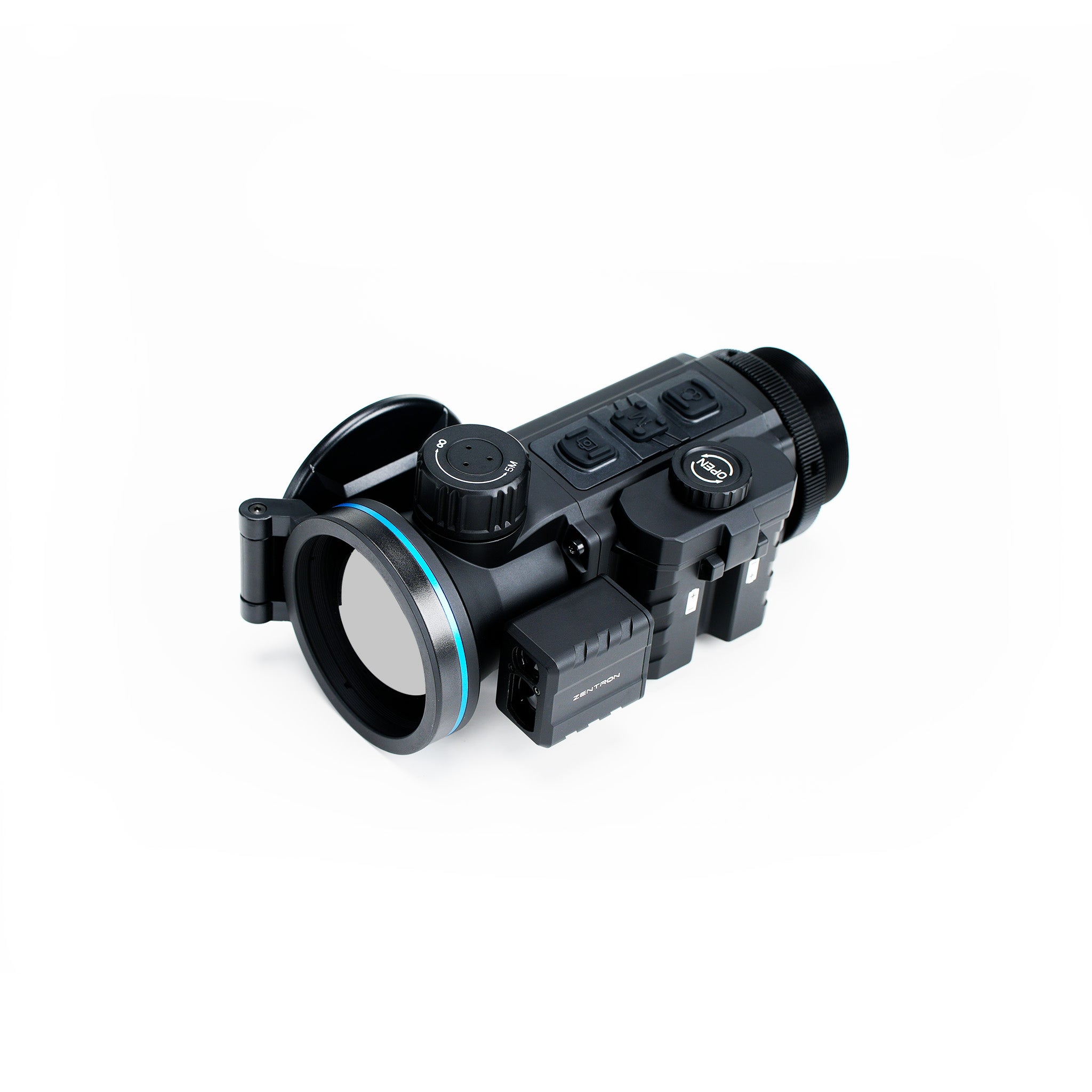

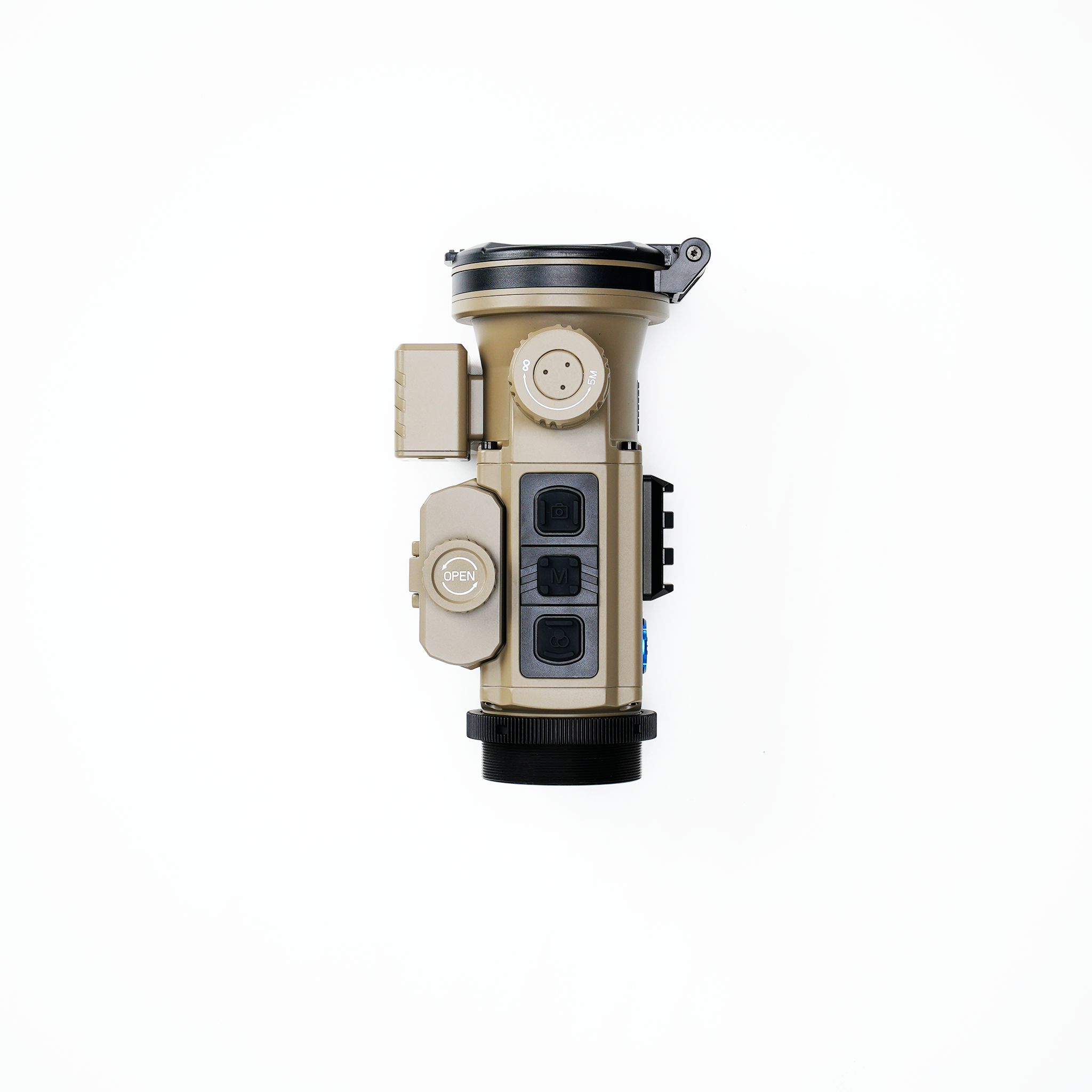

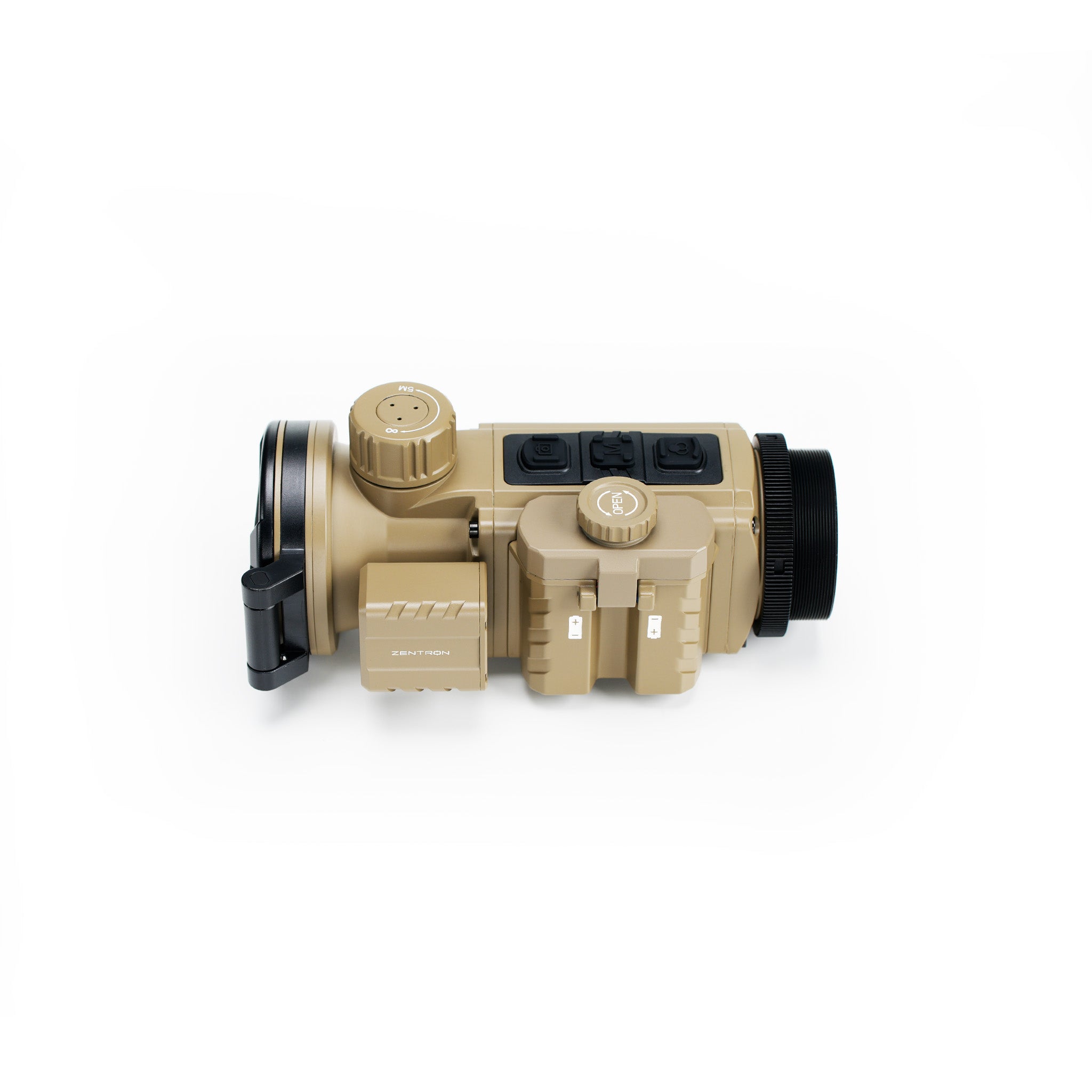

C50R
The C50R pairs a 640 × 512 sensor with a 50 mm f/1.0 objective lens. Built for hunters who want more thermal detail across fields, pastures and open country.
Fit the factory-collimated clip-on ahead of a compatible day scope. Use the correct objective adapter or aligned Picatinny setup, then verify fit, optical alignment and zero before use.

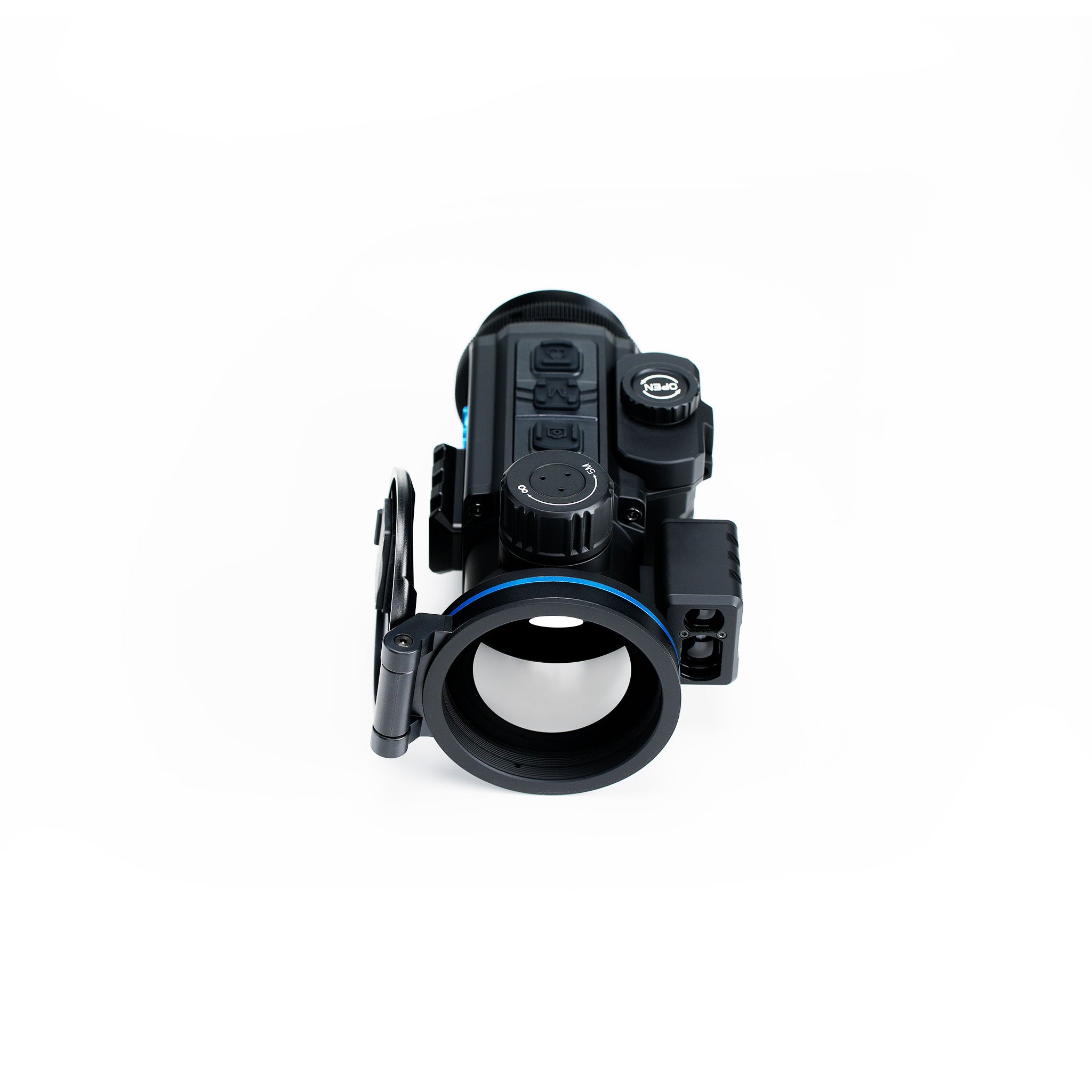

Check distance with the integrated laser rangefinder. Configure your ballistic profile in ZSYNC and use the saved parameters with range data for ballistic calculation. Select the correct profile and verify your setup before use.

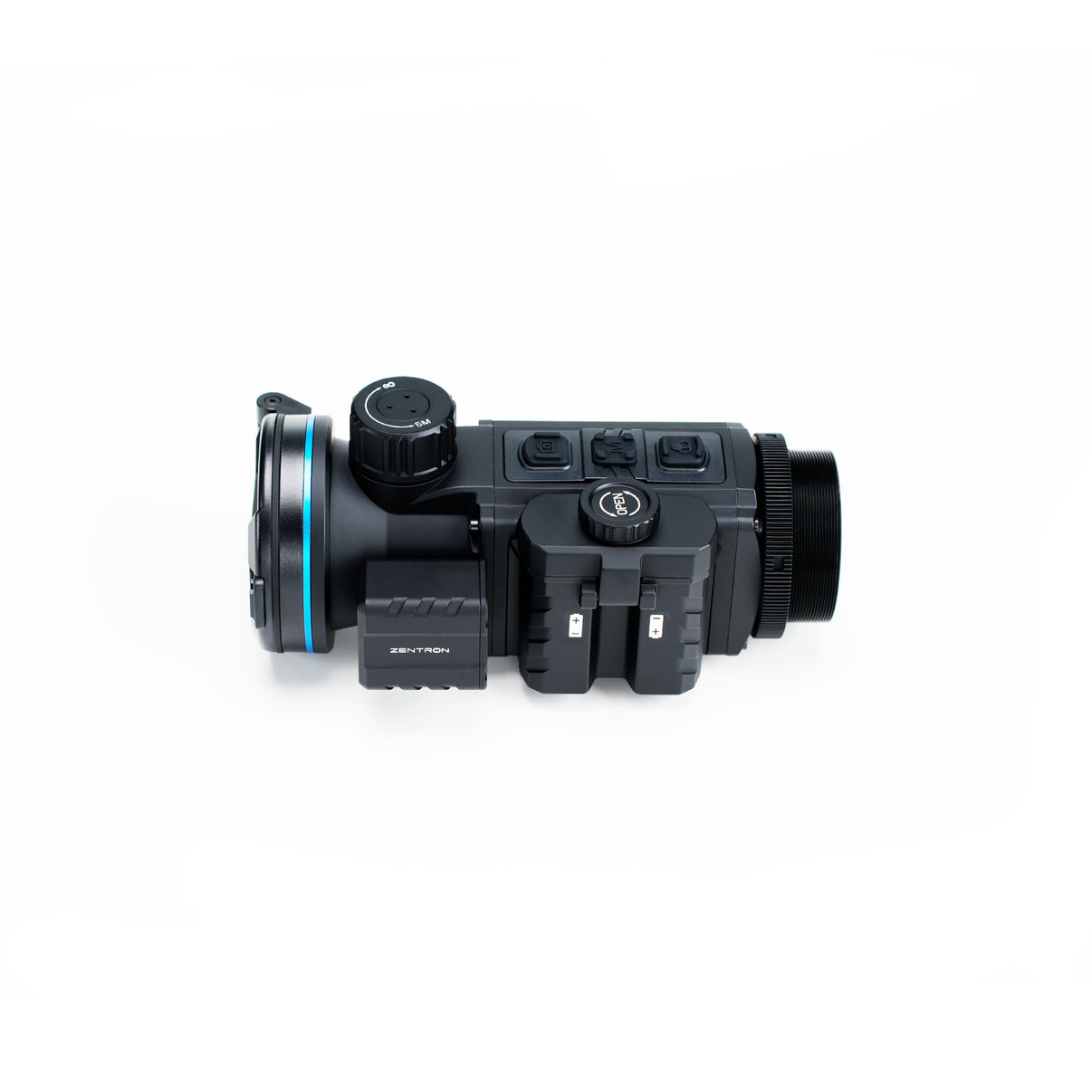

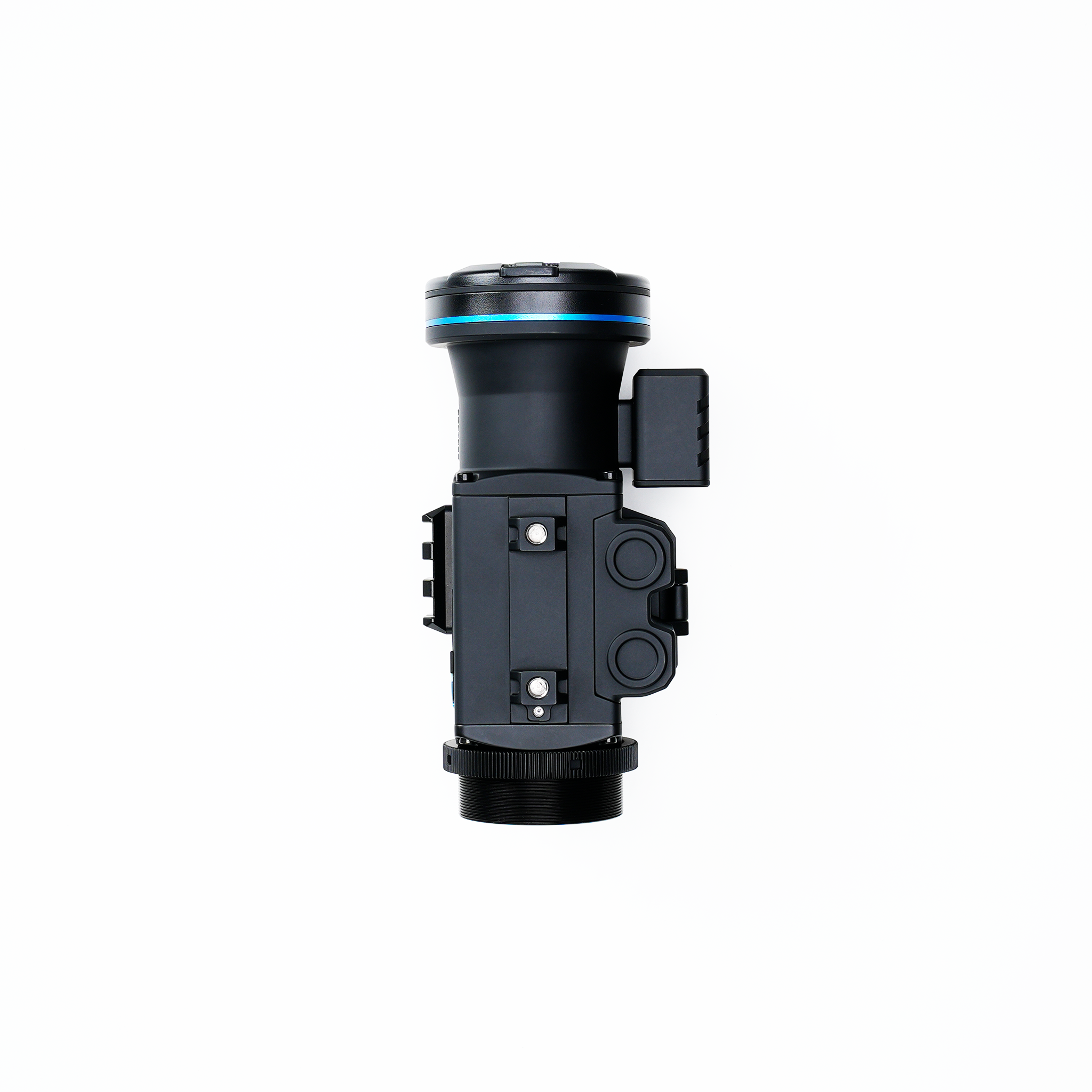

The C50R uses a compact magnesium-alloy housing to keep the setup manageable. Its listed device weight is 14.99 oz; allow for the weight of your chosen adapter and mount.

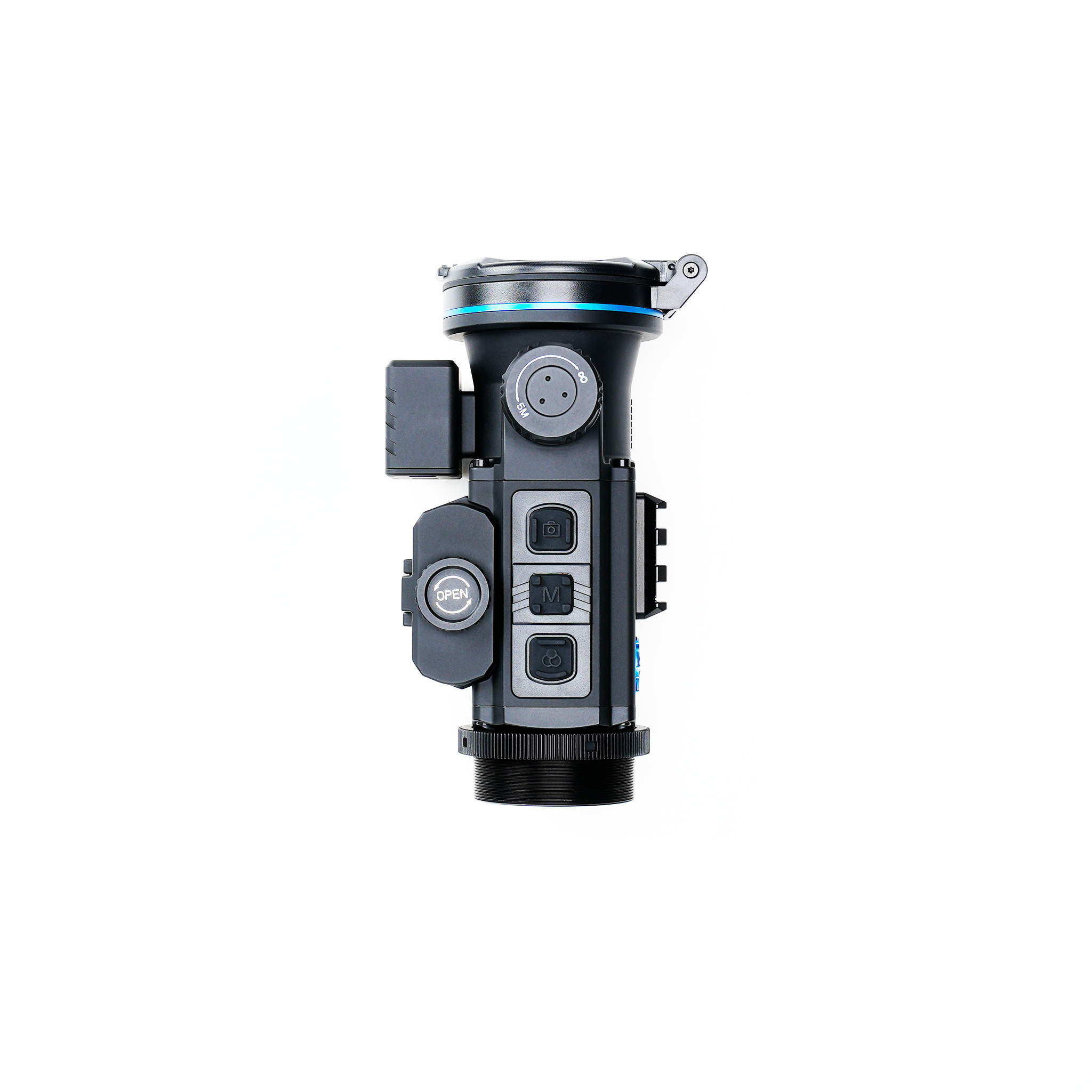

Easy Mode emphasizes frequently used functions with larger icons and text. UI Zoom lets you adjust menu size to suit your day-scope view.

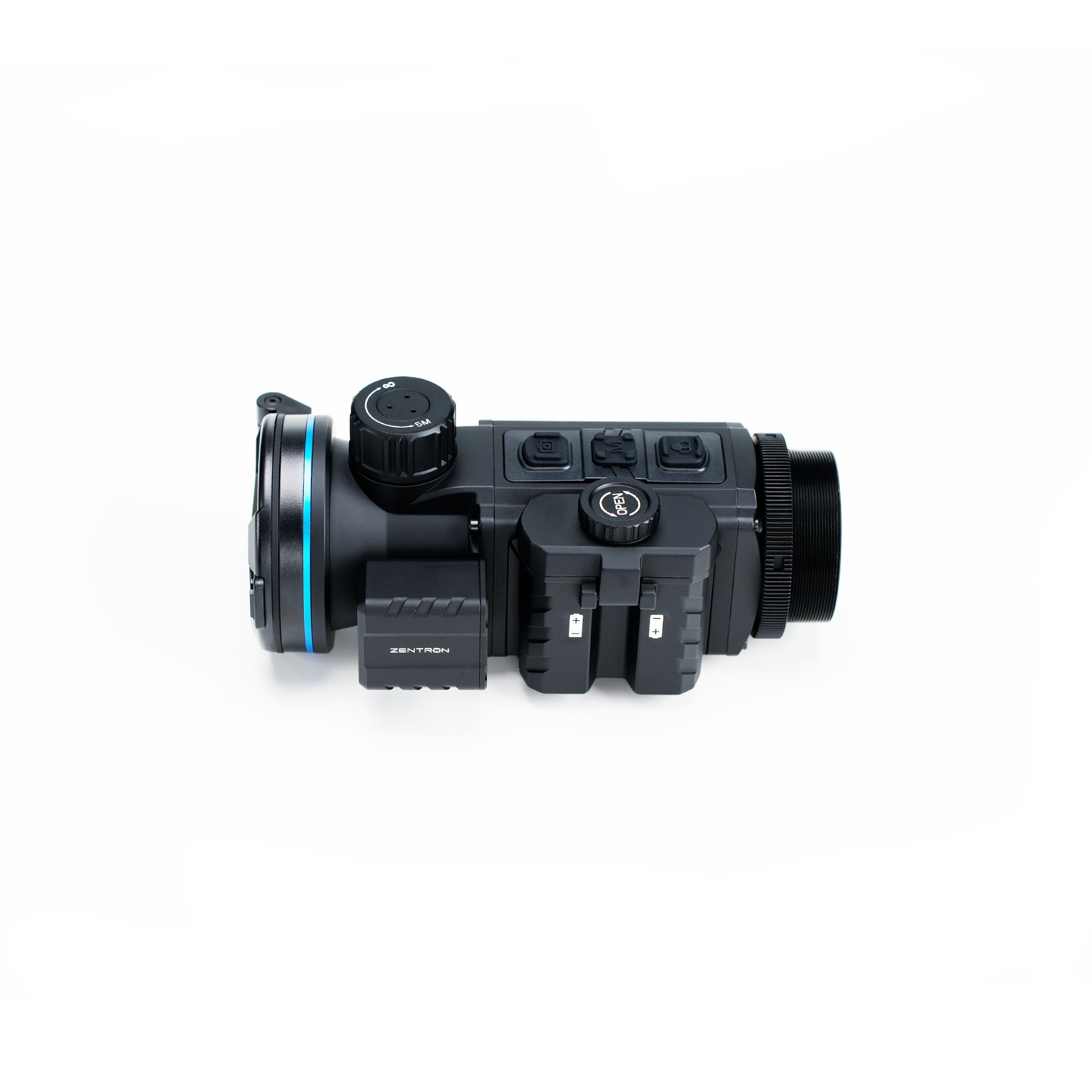

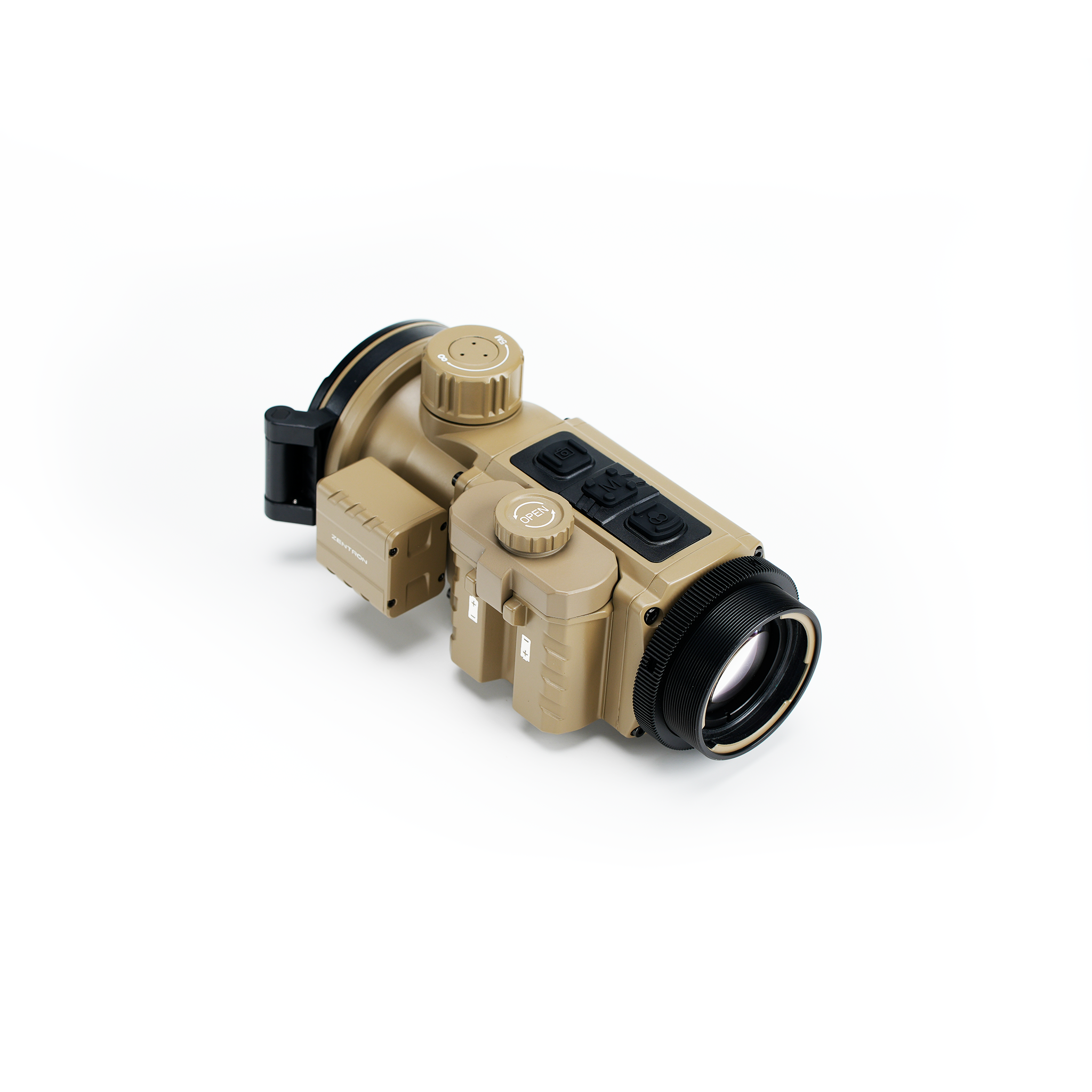

Powered by two replaceable 18350 batteries. Carry charged spares for longer outings. Runtime is up to 6 hours; actual battery life varies with settings, temperature and use.
Pre-record saves the moments before and after recoil activation. Review captured footage on the device and use ZSYNC to transfer selected files to your phone. The virtual reticle is added to recordings and is not a live aiming reticle in clip-on mode.
C50R

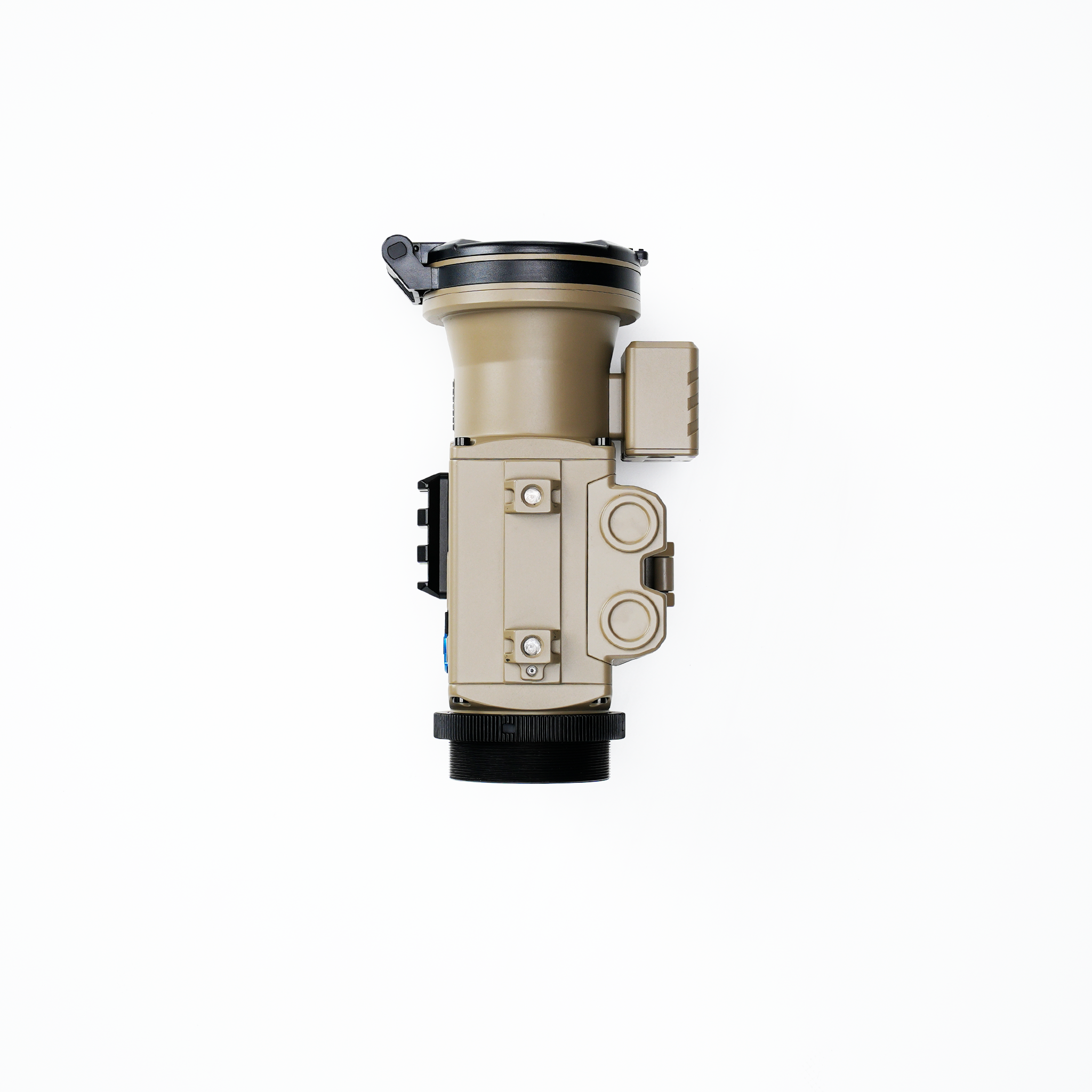

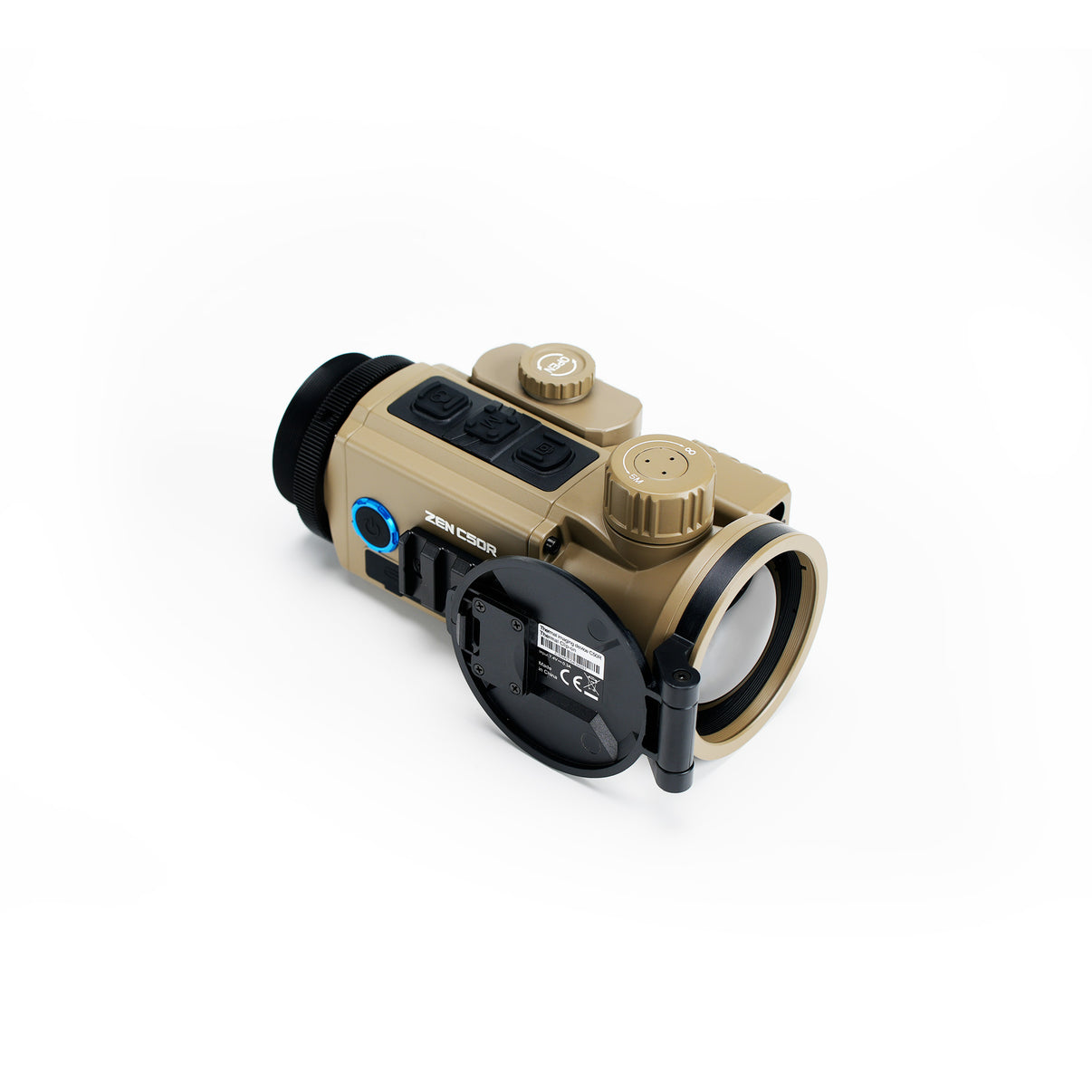

Magnesium housing with an IP67 protection rating.
Save photos and video to built-in storage.
Integrated digital compass and accelerometer.
Connect your device to review and transfer selected media.
TECHNICAL DETAILS
Technical details for the C50R.
| Detector type | VOx uncooled |
|---|---|
| Resolution | 640 × 512 |
| Pixel pitch | 12 μm |
| Frame rate | 50 Hz |
| Spectral range | 8–14 μm |
| NETD | ≤18 mK |
| Objective lens | 50 mm f/1.0 |
|---|---|
| Field of view | 8.7° (H) × 7° (V) |
| Close focus | 5 yd |
| Detection range | 2,800 yd |
| Optical magnification | 1× |
| Laser safety class | Class 1 |
|---|---|
| Wavelength | 905 nm |
| Maximum measuring range | 1,312 yd |
| Measurement accuracy | ±1 yd |
| Minimum measuring range | 5 yd |
| Display type | OLED |
|---|---|
| Display resolution | 1920 × 1080 |
| Digital zoom | Clip-on mode: 1× Monocular mode: 2.3–18.4× |
| Color palettes | Multiple thermal palettes |
| Start-up time | Less than 5 seconds |
| Connectivity | Wi-Fi, Bluetooth & microphone |
| Sensors | Built-in accelerometer and digital compass |
| Built-in memory | 64 GB |
| Battery | 2 × 18350 |
|---|---|
| Maximum battery life | 6 hours |
| USB interface | USB Type-C |

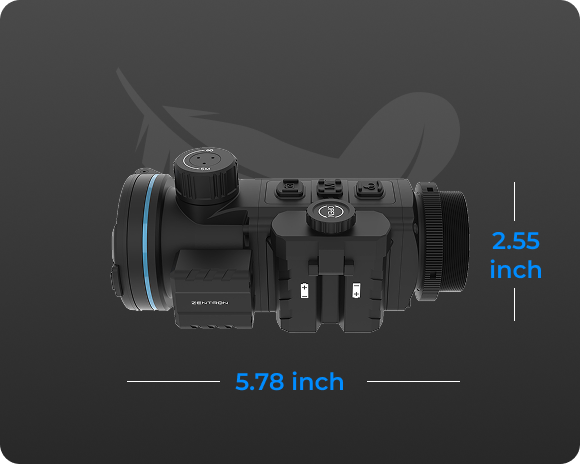

| Dimensions | 5.78 × 2.55 × 2.91 in |
|---|---|
| Weight | 14.99 oz |
| Connection thread | M45 × 0.75 |
| Housing material | Magnesium alloy |
| Protection rating | IP67 |
|---|---|
| Operating temperature | −4°F to 122°F |
| Storage temperature | −40°F to 122°F |
| Maximum recoil | 1,000 g / 0.4 ms; rated up to .300 Win. Mag. and 7mm Rem. Mag. |
